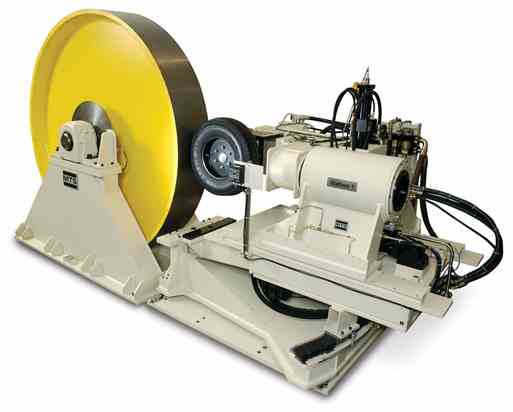

Apply precise tire loading in controlled laboratory settings to measure tire wear under an extensive range of normal driving scenarios. MTS Treadwear systems are deployed worldwide, enabling major manufacturers and test labs to acquire faster and more accurate and repeatable results than possible through outdoor treadwear fleet testing, saving considerable time and money.
MTS Treadwear systems are custom-designed to operate 24/7 - combine this with our local MTS service expertise and life cycle management to ensure system uptime .
Leading automotive and tire manufacturers trust MTS to provide deep insights along with the most accurate and repeatable results for their tire testing requirements
Leveraging decades of custom engineering and design, MTS Treadwear systems maximize sensitivity, repeatability and reliability

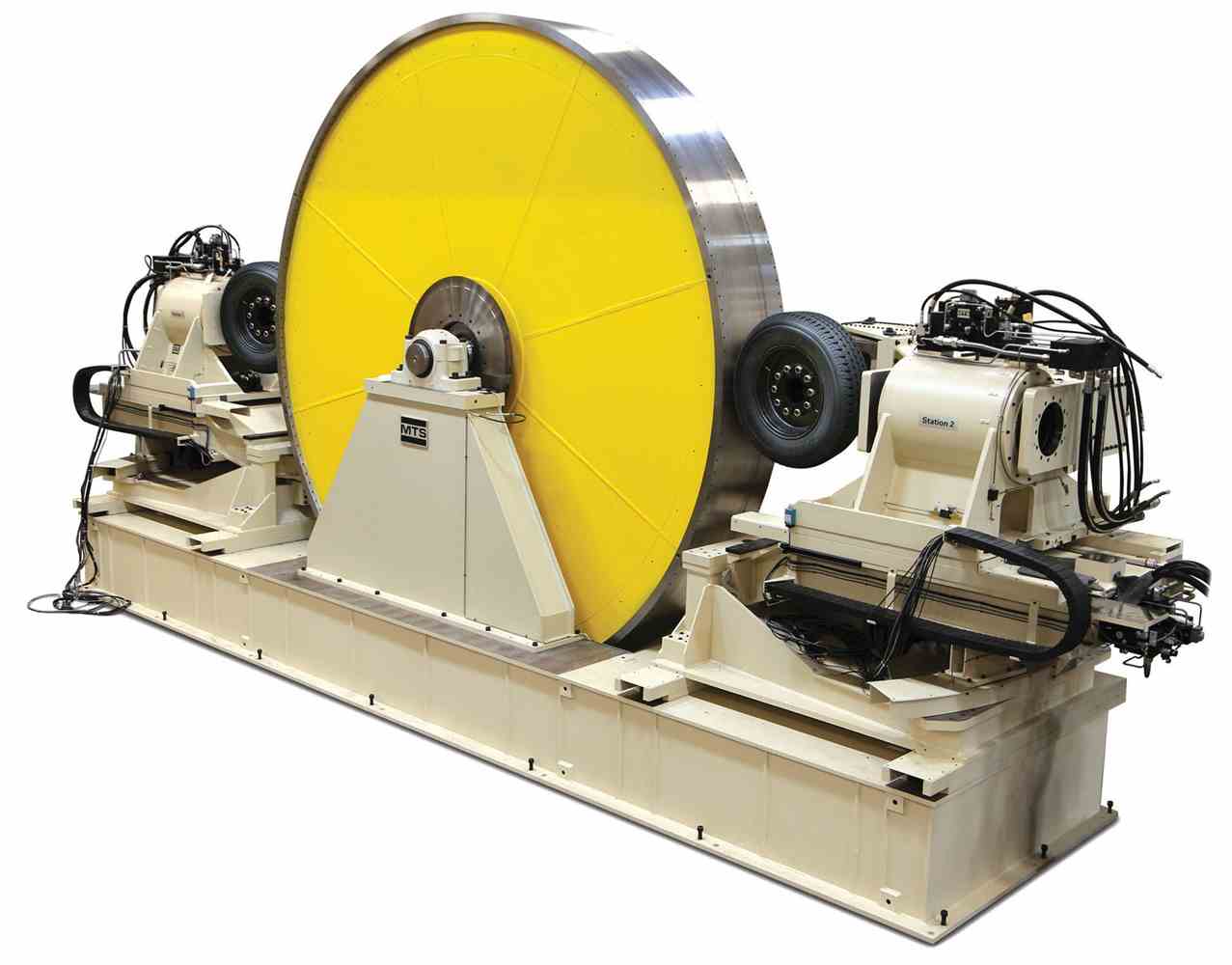

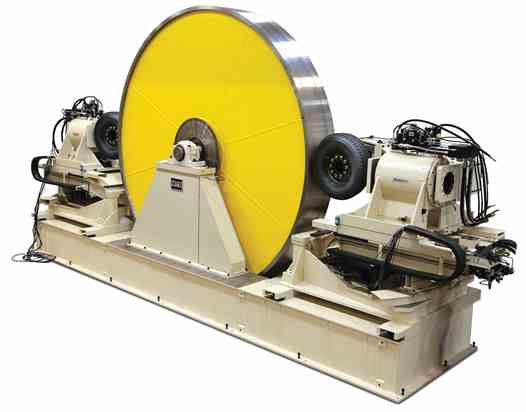

The MTS Treadwear family comprises of two standard configurations plus customizable options to meet a wide range of testing and production needs
|
|
Units |
Passenger Car / Light Truck |
Heavy Truck |
|
RoadWheel Diameter |
mm |
3048 or 5000 |
3048 or 5000 |
|
Maximum Speed |
km/h |
160 |
150 |
|
Tire Maximum Diameter |
mm |
1000 |
1400 |
|
Tire Maximum Width |
mm |
425 |
508 |
|
Radial Load |
N |
25000 |
70000 |
|
Lateral Load |
± N |
10000 |
30000 |
|
Slip Angle |
± deg |
10 |
8 |
|
Camber Angle |
± deg |
6 |
6 |
|
Wheel Torque |
Nm |
2000 |
4000 |
|
Lateral Motion |
± mm |
125 |
125 |
