Bionix Multistation Wear Simulators

phranakornsoft — Thu, 30 Mar 2023 03:25:21 +0000

KEY PRODUCT FEATURES

Repeatable Results

Accurate replication of forces and motions

Accelerated Testing

Multistation configuration speeds testing time

Accurate

Includes devices to control fluid concentration and temperature

Durable / Reliable

Durable specimen containment modules

MODEL COMPARISON

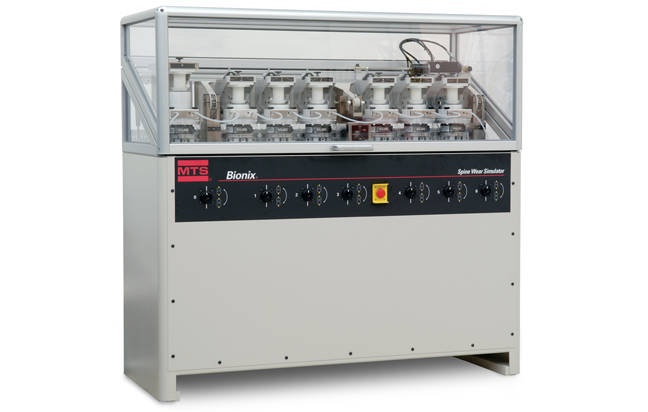

Spine Wear Simulator

Six Station
One Load Soak
Single-station Spinewear System Also Available

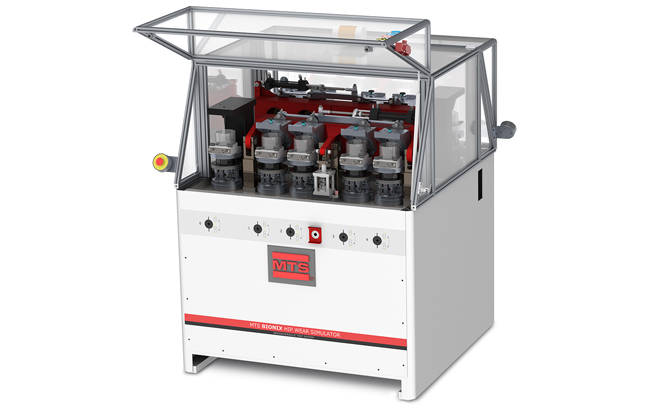

Hip Wear Simulator

Eight Station
Two Load Soak
Six Degree of Freedom
Single-station Hip Wear System Also Available

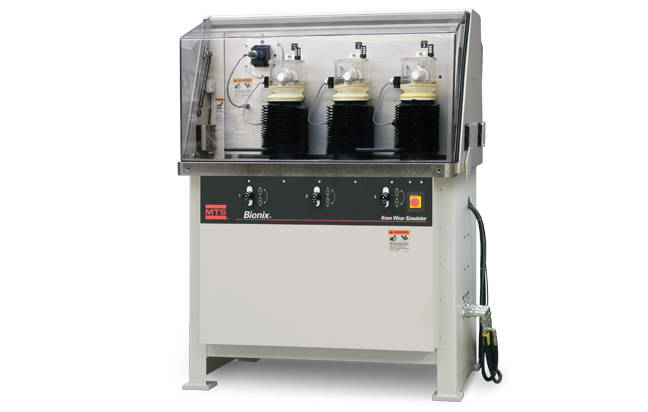

Knee Wear Simulator

Six Station
Two Load Soak
Single-station Knee Wear System Also Available

TECHNICAL OVERVIEW

Spine Wear Specifications

Bionix® Spine Wear Simulator

Footprint		160 cm x 66 cm x 158 cm
		(width x depth x height)
Number of active stations		6
Number of load soak specimens		2 (optional)
Source of force/motion		Hydraulic fluid
Axial load*	Maximum force	4 kN
	Displacement	+ 12.7 mm / -3.2 mm
Flexion-extension*	Maximum torque	15 N-m
	Displacement	+/- 10°
Lateral bending*	Maximum torque	15 N-m
	Displacement	+/- 10°
Axial rotation*	Maximum torque	10 N-m
	Displacement	+/- 7.5°
Anterior-posterior translation	Restraining force	Zero to fully locked
	Displacement	+/- 4.5 mm
Lateral translation	Restraining force	Zero to fully locked
	Displacement	+/- 4.5 mm
*Per station (per specimen) ratings

Hip Wear Specifications

Bionix® Hip Wear Simulator

LENGTH	LENGTH		HEIGHT	HEIGHT
(NO ENCLOSURE)	(WITH ENCLOSURE)	DEPTH	(COVER CLOSED)	(COVER OPEN)	WEIGHT
1854 mm	2159 mm	877 mm	1700 mm	2157 mm	1821 kg
(73 in)	(85 in)	(35 in)	(67 in)	(85 in)	(4015 lb)

Knee Wear Specifications

Bionix® Knee Wear Simulator

BIONIX KNEE WEAR SIMULATOR

	6 Station		Optional - ISO 14243 Knee		Optional - High
	Base Power Module		Wear Fixturing Module		Displacement Knee Wear
	Load Frame	Load Frame	Fixture Range	Fixture Range	Fixture Range	Fixture Range
	Range of Motion	Range of Forces	of Motion	of Forces	of Motion	of Forces
		(per specimen)		(per specimen)		(per specimen)
Flexion/Extension (My)	180 deg	74 N·m	67 deg	74 N·m	180 deg	74 N·m
	-20 deg	-74 N·m	-5 deg	-74 N·m	-20 deg	-74 N·m
Varus (+) / Valgus (–) (Mx)	(see fixturing)		5 deg	~0 N·m*	5 deg
			-5 deg	~0 N·m*	-5 deg	**
Tibial Rotation (Mz)	12.3 deg	74 N·m	7.0 deg	74 N·m	12 deg	74 N·m
	-12.3 deg	-74 N·m	-5.9 deg	-74 N·m	-12 deg	-74 N·m
Axial Force (Fz)	50 mm	10,000 N	50 mm	5000 N	50 mm	10,000 N
	-50 mm	0 N	-50 mm	0 N	-50 mm	0 N
Anterior/Posterior (Fx)	25.4 mm	1667 N	7.5 mm	1667 N	25 mm	1667 N
	-25.4 mm	-1667 N	-7.5 mm	-1667 N	-25 mm	-1667 N
Medial/Lateral (Fy)	(see fixturing)		7.5 mm	~0 N*	3.7 mm
Translation			-7.5 mm	~0 N*	3.7 mm	**

BLUE text indicates controlled DOF
* Free-floating axis
** Adjustable position, locked during operation

Simulator Dimensions

		HEIGHT	HEIGHT
LENGTH	DEPTH	(COVER CLOSED)	(COVER OPEN)	WEIGHT
1320 mm	1145 mm	1725 mm	2235 mm	1590 kg
(52 in)	(45 in)	(68 in)	(88 in)	(3506 lb)

Downloads

MTS BIONIX HIP WEAR SIMULATOR BROCHURE

MTS BIONIX KNEE WEAR SIMULATOR BROCHURE

MTS BIONIX SPINE WEAR SIMULATOR BROCHURE

Bionix EM Torsion Test System

phranakornsoft — Wed, 29 Mar 2023 05:55:47 +0000

KEY PRODUCT FEATURES

Innovative Design

Axial loading system that allows switching from tension to compression without disturbing test setups

Precise

Provides precision control over the amount of torque applied to specimens

Advanced Safety Features

Retractable test space enclosure with integrated safety interlocks

Versatile

Large test space with adjustable torque carriage accommodates changing needs

TECHNICAL OVERVIEW

Bionix EM Torsion Specifications

SPECIFICATIONS	UNITS
System Torque Rating, Peak @ Zero Speed	+/- N-m	50
Test Speed, Maximum @ 240 V (1)	rpm	175
Specimen Diameter Maximum (2)	mm	200
Test Space Maximum	mm	530
Maximum Rotations	#	26214
Rotation Resolution	arc-sec	7, 9
Backlash, Maximum (3)	arc-sec	180
Torsional Stiffness, Frame Only	N-m/deg	1691
Axial Preload/Axial Preload Maximum	+/- N	220
Preload Method		Deadweight, Closed System
Frame Length	mm	1200
Frame Depth	mm	435
Frame Height	mm	420
Weight Hanger Height	mm	1135
Frame Weight	kg	70
Torque Cells Available	+/- N-m	50, 20, 10, 2 & 0.2
Fixture Mounting		M5 Bolt Circle
Grips Included with System		Keyed Chuck, 2-12.7 mm diameter
Grip Options		Precision Collet Grips (0.2-5.0 mm)
		Precision Miniature Collet Grips
		Block Fixture for Simulated Bone, etc.

Notes:
1.Peak test speed, maximum @ 110 V 100 rpm
2.150 mm with protective bellows in place
3.Gearbox only, rail/carriage not included

Downloads

BIONIX EM TORSION BROCHURE

Bionix Orthopaedic Subsystems

phranakornsoft — Wed, 29 Mar 2023 05:48:13 +0000

Video Product

KEY PRODUCT FEATURES

Versatile

Modular, scalable subsystems for a wide variety of of orthopaedic kinematics studies

Accurate / Repeatable Results

Simulate the motions, load and in-vivo environments for accurate results

Unmatched Expertise

Application engineers with a deep knowledge of orthopaedic testing requirements

Integrated / Synchronized

Complete, out-of-the-box solutions for biomechanical research

MODEL COMPARISON

Hip Wear Subsystem

For long-term tests of hip replacement wear and fatigue
Achieves the following motions:
- Flexion / extension (120 degrees)
- Abduction / adduction (60 degrees - medial / lateral motion)
- Internal / external rotation (greater than 20 degrees)
Following activities can be programmed in combination: level walking, descending / ascending stairs, sitting in / rising from a chair

Femoral Fatigue Subsystem

For testing femoral stem components of hip replacements to ASTM 1440 and ISO 7206-4
Includes load cell adapter, potting cup base, chamber and seals, chamber holder and thrust bearing and lower housing assembly

Knee Wear Subsystem

Performs active flexion testing with these six degrees of freedom:
- Axial loading to 5 kN
- Torsion (tibial rotation greater than 20 degrees)
- Flexion / extension up to 120 degrees
- Anterior-posterior shearing to 20 mm
- Varus / valgus alignment (free-floating)
- Medial / lateral (free-floating)
Following activities can be programmed in combination: level walking, descending / ascending stairs, sitting in / rising from a chair

Spine Kinematics Subsystem

Addresses spinal flexion, extension, lateral bending, axial rotation, axial force and displacement, and combined motions
Combined motion accelerates testing to make the most of highly perishable cadaveric specimens
Smooth motion facilitates precise evaluations

Dental Implants

For testing dental implant durability

TECHNICAL OVERVIEW

Bionix Spine Kinematics Subsystem

A Modular Solution for Spine Kinematics Research

Developing effective treatments for spinal injuries and disease is one of the more daunting challenges facing the field of orthopaedics today. Whether the approach involves fixation techniques or the use of motion preservation devices, meaningful development requires extensive knowledge of the complexities of spine kinematics.

To help build this body of knowledge, MTS has developed the Bionix Spine Kinematics Subsystem: a modular, mechanical testing platform designed specifically for characterizing the behavior of spine specimens under a full spectrum of real world forces and motions.

Combined with a compact axial/torsional servohydraulic load frame, versatile FlexTest® digital controls and MTS TestSuite MP software, the Spine Kinematics Subsystem offers a complete out-of-the-box solution for applying a wide array real-world forces and motions to cadaveric spine specimens.

The subsystem features a selection of both actively-controlled, powered modules and passive non-powered modules that can be integrated to simulate flexion, extension, lateral bending, axial rotation, and combined twisting and flexural motions. To isolate a specific mode of loading for study, other loads can be held at zero or user-defined values. Additionally, the subsystem is designed to provide clear visibility of the specimen under test and to speed setup and testing to make optimal use of perishable biological specimens.

Downloads

BIONIX ORTHOPAEDIC SUBSYSTEMS BROCHURE

BIONIX SPINE KINEMATICS SYSTEM BROCHURE

Bionix® Tabletop Test Systems

phranakornsoft — Mon, 27 Mar 2023 08:09:02 +0000

KEY PRODUCT FEATURES

Precise

Precision-machined connections between the actuator cylinder and end-caps offer consistent alignment

Accurate / Repeatable Results

Fatigue-rated actuators incorporated into the cross-beam provide testing reliability

Efficient Operation

Integrated T-slot table with channels to contain spilled fluids means less test interruptions

Advanced Safety Features

Restricted actuator speed as it moves into position protects specimen and operator

MODEL COMPARISON

Model 370.02 Axial

Rated dynamic force: 25 kN (5.5 kip)
Available in standard or extended height

Model 370.02 Axial / Torsional

Rated dynamic force: 25 kN / 250 N-m (5.5 kip / 2200 lbf-in)
Available in standard and extended height

TECHNICAL OVERVIEW

Bionix Tabletop Test Systems Specifications

Bionix tabletop test systems incorporate Model 370.02 load frames that are available in standard or extended heights.

			MODEL
LOAD FRAME SPECIFICATIONS	DIAGRAM DETAIL	UNITS	370.02 Axial	370.02 Axial / Torsional
Force capacity (rated dynamic force)		kN	25	25 kN / 250 N·m
		(kip)	(5.5)	(5.5 kip / 2200 lbf·in)
Available actuator₁		kN	15, 25	15 kN / 150 N·m
				25 kN / 250 N·m
		(kip)	(3.3, 5.5)	(3.3 kip / 1300 lbf·in)
				(5.5 kip / 2200 lbf·in)
Actuator dynamic stroke₁		mm	100, 150	100 mm / 270°
				150 mm / 270°
		(in)	(4, 6)	(4, 6)
Minimum vertical test space – standard height₂	A	mm	144	30
		(in)	(5.7)	(1.2)
Maximum vertical test space – standard height₃	A	mm	827	714
		(in)	(32.6)	(28.1)
Minimum vertical test space – extended height₂	A	mm	398	284
		(in)	(15.7)	(11.2)
Maximum vertical test space – extended height₃	A	mm	1335	1222
		(in)	(52.6)	(48.1)
Working height₄	B	mm	2308	2308
		(in)	(9.1)	(9.1)
Column spacing (test space width)	C	mm	460	460
		(in)	(18.1)	(18.1)
Column diameter	D	mm	76.2	76.2
		(in)	(3)	(3)
Base width	E	mm	622	622
		(in)	(24.5)	(24.5)
Base depth	F	mm	577	577
		(in)	(22.7)	(22.7)
Diagonal clearance – standard height₅	G	mm	17508	17508
		(in)	(68.9)	(68.9)
Diagonal clearance – extended height₅	G	mm	22508	22508
		(in)	(88.6)	(88.6)
Overall height – standard height₆	H	mm	19898	21858,9
		(in)	(78.3)	(86)
Overall height – extended height₆	H	mm	26248	26938,9
		(in)	(103.3)	(106)
Stiffness₇		N/m	345 x 106	345 x 106
		(lbf/in)	(1.95 x 106)	(1.95 x 106)
Weight		kg	248	322
		(lb)	(547)	(710)

1. All load frame specifications listed in this chart are based upon the actuator ratings and dynamic stroke values indicated by bold text.
2. Minimum Vertical Test Space: Span between load cell and piston rod face when fully retracted at beginning of the dynamic stroke; crosshead down, no alignment fixture.
3. Maximum Vertical Test Space: Span between load cell and piston rod face when fully retracted at beginning of the dynamic stroke; crosshead up, no alignment fixture.
4. Working Height: Tabletop to top of T-slot table; includes standard FabCell isolation.
5. Diagonal Clearance: Hose height to tip of foot with FabCell; crosshead down.
6. Overall Height: From tabletop surface, including standard FabCell isolation, to top of the hoses or highest point on actuator; crosshead fully raised.
7. Measured at crosshead height of 600 mm (23.6 in).
8. For load frames with optional pneumatic /elastomeric vibration isolation mounts, add 37 mm (1.44 in) to dimensions B, G, and H.
9. For axial/torsional frames, add 152 mm (6 in) to dimension H, for 150 mm (6 in) stroke actuator.

Single-station HPU

Our Smallest, Quietest HPU

The MTS SilentFlo 515.04 was specifically designed for use with a single MTS Landmark® or Bionix® load frame. For applications requiring a force range of 1–25 kN (0.2–5.5 kip) and a maximum average flow rate of 15.1 lpm (4 gpm), this HPU provides all the benefits of proven SilentFlo technology at a fraction of the cost.

MTS SILENTFLO 515.04 HPU BROCHURE

Downloads

BIONIX ACCESSORIES BROCHURE

BIONIX ORTHOPAEDIC SUBSYSTEMS BROCHURE

BIONIX TABLETOP BROCHURE

Landmark® Servohydraulic Test Systems

phranakornsoft — Mon, 27 Mar 2023 07:54:07 +0000

KEY PRODUCT FEATURES

Industry Standard

A proven leader in servohydraulic testing technology

Accurate / Repeatable Results

Superior frame stiffness and alignment produces accurate results

Unmatched Expertise

Applications expertise and service and support

Versatile

A wide array of test capabilities for low- to high-force applications

MODEL COMPARISON

Model 370.02

Max rated force capacity: 25 kN (5.5 kip)
Tabletop
Test lower strength materials from plastics to aluminum
Ideal for durability testing on small components
Available in standard or extended height

Model 370.10

Max rated force capacity: 100 kN (22 kip)
Floor-standing
Available in standard or extended height

Model 370.25

Max rated force capacity: 250 kN (55 kip)
Floor-standing
Available in standard or extended height

Model 370.50

Max rated force capacity: 500 kN (110 kip)
Floor-standing
Available in standard or extended height

FULL PRODUCT INFORMATION

Floor-Standing Load Frame Specifications

Floor-Standing Load Frame Specifications

LOAD FRAME	DIAGRAM				MODEL
SPECIFICATIONS¹	DETAIL	UNITS	370,1		370,25		370,5
			Actuator	Actuator	Actuator	Actuator	Actuator	Actuator
			integral	integral to	integral	integral to	integral	integral to
			to Base	Crosshead	to Base	Crosshead	to Base	Crosshead
Force capacity		kN	100	100	250	250	500	500
(rated dynamic force)		(kip)	(22)	(22)	(55)	(55)	(110)	(110)
Available actuator ratings₁ (nominal)		kN	15, 25, 50, 100	15, 25, 50, 100	100, 250	100, 250	250, 500	250, 500
		(kip)	(3.3, 5.5, 11, 22)	(3.3, 5.5, 11, 22)	(22, 55)	(22, 55)	(55, 110)	(55, 110)
Actuator dynamic stroke₁		mm	100, 150, 250	100, 150, 250	150, 250	150, 250	150	150
		(in)	(4, 6, 10)	(4, 6, 10)	(6, 10)	(6, 10)	(6)	(6)
Min vertical test space -	A	mm	140	70	231	159	427	345
standard height₂		(in)	(5.5)	(2.8)	(9.1)	(6.3)	(16.8)	(13.6)
Max vertical test space -	A	mm	1283	1213	1621	1549	2085	2002
standard height₃		(in)	(50.5)	(47.8)	(63.8)	(61.0)	(82.1)	(78.8)
Min vertical test space -	A	mm	363	292	485	413	NA	NA
extended height₂		(in)	(14.3)	(11.5)	(19.1)	(16.3)	NA	NA
Max vertical test space -	A	mm	1753	1683	2129	2058	NA	NA
extended height₃		(in)	(69.0)	(66.3)	(83.8)	(81.0)	NA	NA
Working height₄	B	mm	922₈, ₁₅	922₁₅	922₈, ₁₅	922₁₅	922₁₅	922₁₅
		(in)	(36.3)	(36.3)	(36.3)	(36.3)	(36.3)	(36.3)
Column spacing	C	mm	533	533	635	635	762	762
(test space width)		(in)	(21.0)	(21.0)	(25.0)	(25.0)	(30.0)	(30.0)
Column diameter	D	mm	76,2	76,2	76,2	76,2	101,6	101,6
		(in)	(3.00)	(3.00)	(3.00)	(3.00)	(4.00)	(4.00)
Base width	E	mm	1018	1018	1112	1112	1351	1351
		(in)	(40.1)	(40.1)	(43.8)	(43.8)	(53.2)	(53.2)
Base depth	F	mm	698	698	737	737	896	896
		(in)	(27.5)	(27.5)	(29.0)	(29.0)	(35.3)	(35.3)
Diagonal clearance -	G	mm	2580₈, ₁₁, ₁₅	2649₁₁, ₁₅	3084₈, ₁₁, ₁₅	3155₁₁, ₁₅	3629₁₁, ₁₅	3699₁₁, ₁₅
standard height₅		(in)	(101.6)	(104.3)	(121.4)	(124.2)	(142.9)	(145.6)
Diagonal clearance -	G	mm	3084₈, ₁₁, ₁₅	3153₁₁, ₁₅	3589₈, ₁₁, ₁₅	3660₁₁, ₁₅	NA	NA
extended height₅		(in)	(121.4)	(124.1)	(141.3)	(144.1)	NA	NA
Overall height -	H	mm	2588₈, ₁₂, ₁₅	3028₉, ₁₅	3095₈, ₁₄, ₁₅	3490₁₀, ₁₅	3688	3961
standard height₆		(in)	(101.9)	(119.2)	(121.8)	(137.4)	(145.2)	(155.9)
Overall height -	H	N/m	3058₈, ₁₃, ₁₅	3498₉, ₁₅	3603₈, ₁₄, ₁₅	3998₁₀, ₁₅	NA	NA
extended height₆		(in)	(120.4)	(137.7)	(141.8)	(157.4)	NA	NA
Stiffness₇		N/m	467 x 10⁶	467 x 10⁶	473 x 10⁶	473 x 10⁶	777 x 10⁶	777 x 10⁶
		(lbf/in)	(2.66 x 10⁶)	(2.66 x 10⁶)	(2.7 x 10⁶)	(2.7 x 10⁶)	(4.44 x 10⁶)	(4.44 x 10⁶)
Weight		kg	635	820	875	1095	1570	1760
		(lb)	(1400)	(1800)	(1925)	(2410)	(3455)	(3875)

1.All load frame specifications listed in this chart are based upon the actuator ratings and dynamic stroke values indicated by bold text.
2.Min Vertical Test Space: Span between force transducer and piston rod face when fully retracted at beginning of the dynamic stroke; crosshead down, no alignment fixture.
3.Max Vertical Test Space: Span between force transducer and piston rod face when fully retracted at beginning of the dynamic stroke; crosshead up, no alignment fixture.
4.Working Height: Floor to top of work surface; includes standard FabCell isolation.
5.Diagonal Clearance: Column height (far side) to tip of foot with FabCell; tie bar or enclosure not included.
6.Overall Height: From floor, including standard FabCell isolation, to the highest point on crosshead; crosshead fully raised (most common stroke length).
7.Measured at typical testing height with hydraulic wedge grips and cylindrical dog-bone specimen.
Typical testing heights per model: Model 370.10 = 750 mm (29.5 in); Model 370.25 = 900 mm (35.5 in); Model 370.50 = 1250 mm (49.2 in)
8.Add 178 mm (7 in) to dimensions B, G, & H for 250 mm (10 in) stroke actuators integral to base.
9.Add 229 mm (9 in) to dimension H for 250 mm (10 in) stroke actuators integral to crosshead.
10. Add 203 mm (8 in) to dimension H for 250 mm (10 in) stroke actuators integral to crosshead.
11. For frames with an optional tie bar add 51 mm (2 in) to dimension G.
12. For 370.10 frames with standard columns, optional tie bar and actuator integral to base add 14 mm (.53 in) to dimension H.
13. For 370.10 frames with extended columns, optional tie bar and actuator integral to base add 51 mm (2 in) to dimension H.
14. For 370.25 frames with standard or extended columns, optional tie bar and actuator integral to base add 14 mm (.53 in) to dimension H.
15. For load frames with optional pneumatic /elastomeric vibration isolation mounts, add 62 mm (2.44 in) to dimensions B, G, and H.

LOAD FRAME	DIAGRAM		MODEL
SPECIFICATIONS₁	DETAIL	UNITS	370.10 200 Hz Elastomer
Force capacity		kN	100
(rated dynamic force)		(kip)	(22)
Available actuator ratings₁ (nominal)		kN	15, 25
		(kip)	(3.3, 5.5)
Actuator dynamic stroke₁		mm	100
		(in)	(4)
Min vertical test space -	A	mm	0
standard height₂		(in)	0
Max vertical test space -	A	mm	788
standard height₃		(in)	(31.0)
Working height₄	B	mm	922
		(in)	(36.3)
Column spacing	C	mm	533
(test space width)		(in)	(21.0)
Column diameter	D	mm	76,2
		(in)	(3.00)
Base width	E	mm	1018
		(in)	(40.1)
Base depth	F	mm	698
		(in)	(27.5)
Diagonal clearance₅	G	mm	2079₈
		(in)	(81.8)
Overall height₆	H	mm	2065₉
		(in)	(81.3)
Stiffness₇		N/m	467 x 10⁶
		(lb/in)	(2.66 x 10⁶)
Weight		kg	635
		(lb)	(1400)

1.All load frame specifications listed in this chart are based upon the actuator ratings and dynamic stroke values indicated by bold text.
2.Min Vertical Test Space: Span between force transducer and piston rod face when fully retracted at beginning of the dynamic stroke; crosshead down, no alignment fixture.
3.Max Vertical Test Space: Span between force transducer and piston rod face when fully retracted at beginning of the dynamic stroke; crosshead up, no alignment fixture.
4.Working Height: Floor to top of work surface; includes standard FabCell isolation.
5.Diagonal Clearance: Column height (far side) to tip of foot with FabCell; tie bar or enclosure not included.
6.Overall Height: From floor, including standard FabCell isolation, to the highest point on crosshead; crosshead fully raised (most common stroke length).
7.Measured at crosshead height of 750 mm (29.5 in).
8.For frames with an optional tie bar add 51 mm (2 in) to dimension G.
9.For 370.10 200 Hz elastomer frames with an optional tie bar add 28 mm (1.1 in) to dimension H.

Tabletop Load Frame Specifications

Tabletop Load Frame Specifications

Model 370.02 tabletop load frames are available standard or extended heights with the

actuator configured integral to load frame crosshead.

LOAD FRAME	DIAGRAM		MODEL
SPECIFICATIONS₁	DETAIL	UNITS	370.02	370.02 100 Hz Elastomer
Force capacity		kN	25	25
(rated dynamic force)		(kip)	(5.5)	(5.5)
Available actuator ratings₁ (nominal)		kN	15, 25	15, 25
		(kip)	(3.3, 5.5)	(3.3, 5.5)
Actuator dynamic stroke₁		mm	100, 150	100, 150
		(in)	(4, 6)	(4, 6)
Min vertical test space -	A	mm	144	144
standard height₂		(in)	(5.7)	(5.7)
Max vertical test space -	A	mm	827	827
standard height₃		(in)	(32.6)	(32.6)
Min vertical test space -	A	mm	398	398
extended height₂		(in)	(15.7)	(15.7)
Max vertical test space -	A	mm	1335	1335
extended height₃		(in)	(52.6)	(52.6)
Working height₄	B	mm	230₈	230₈
		(in)	(9.1)	(9.1)
Column spacing	C	mm	460	460
		(in)	(18.1)	(18.1)
Column diameter	D	mm	76.2	76.2
(test space width)		(in)	(3.00)	(3.00)
Base width	E	mm	622	622
		(in)	(24.5)	(24.5)
Base depth	F	mm	577	577
		(in)	(22.7)	(22.7)
Diagonal clearance -	G	mm	1750₈	1750₈
standard height₅		(in)	(68.9)	(68.9)
Diagonal clearance -	G	mm	2250₈	2250₈
extended height₅		(in)	(88.6)	(88.6)
Overall height -	H	mm	1989₈	1989₈
standard height₆		(in)	(78.3)	(78.3)
Overall height -	H	mm	2624₈	2624₈
extended height₆		(in)	(103.3)	(103.3)
Stiffness₇		N/m	345 x 10⁶	345 x 10⁶
		(lb/in)	(1.95 x 10⁶)	(1.95 x 10⁶)
Weight		kg	248	286
		(lb)	(547)	(630)

1.All load frame specifications listed in this chart are based upon the actuator ratings and dynamic stroke values indicated by bold text.
2.Min Vertical Test Space: Span between force transducer and piston rod face when fully retracted at beginning of the dynamic stroke; crosshead down, no alignment fixture.
3.Max Vertical Test Space: Span between force transducer and piston rod face when fully retracted at beginning of the dynamic stroke; crosshead up, no alignment fixture.
4.Working Height: Floor to top of work surface; includes standard FabCell isolation.
5.Diagonal Clearance: Hose height to tip of foot with FabCell; crosshead down.
6.Overall Height: From floor, including standard FabCell isolation, to top of the hoses or highest point on actuator; crosshead fully raised.
7.Measured at crosshead height of 600 mm (23.6 in).
8.For load frames with optional pneumatic /elastomeric vibration isolation mounts, add 37 mm (1.44 in) to dimensions B, G, and H.

Single-station HPU

Our Smallest, Quietest HPU

MTS SILENTFLO 515.04 HPU BROCHURE

Downloads

MTS LANDMARK TEST SYSTEM BROCHURE

MTS TESTSUITE FATIGUE FRACTURE BROCHURE

MTS TESTSUITE MP BROCHURE

Acumen® Electrodynamic Test Systems

phranakornsoft — Mon, 27 Mar 2023 07:27:37 +0000

Video Product

KEY PRODUCT FEATURES

Easy, Intuitive Use

Simple installation, setup, test monitoring and modification

Accurate / Repeatable Results

Patent-pending software algorithms provide auto-tuning

Energy Efficient

Electric actuation uses less energy

Innovative Technology

Industry-leading performance, with up to 12 kN force capacity and axial/torsional options

MODEL COMPARISON

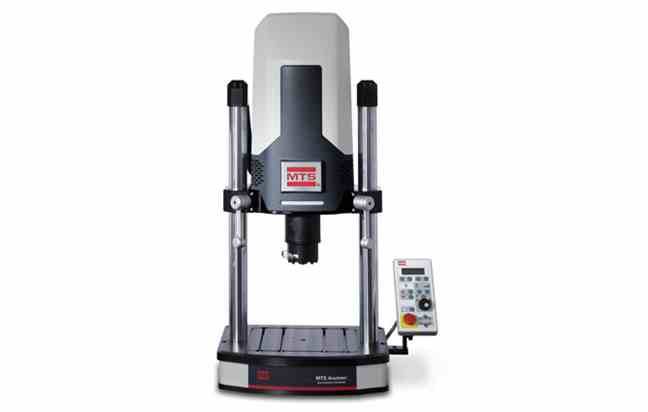

Acumen 1

Dynamic force: 1250 N (281 (lbf)
Static force: 850 N (191 lbf)
Actuator dynamic stroke: 70 mm (2.75 in)
Tabletop

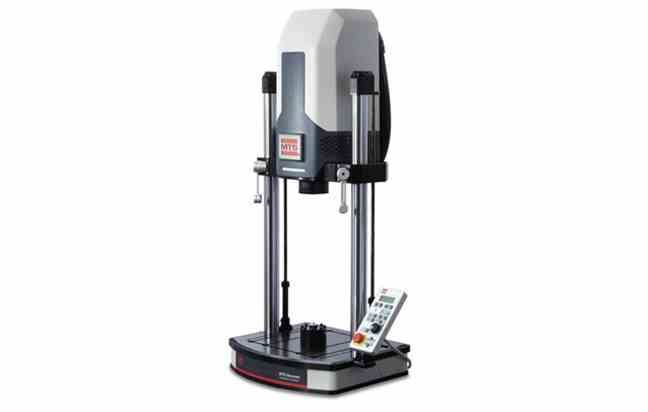

Acumen 3

Dynamic force: 3000 N (670 lbf)
Static force: 2000 N (450 lbf)
Actuator dynamic stroke: 70 mm (2.75 in)
Dynamic torque rating: +/- 30 Nm (265 in-lb)
Static torque rating: +/- 21 Nm (185 in-lb)
Tabletop
Available in standard or axial/torsional configurations

Acumen 12

Dynamic force: 12000 N (2697 lbf)
Static force: 8500 N (1910 lbf)
Actuator dynamic stroke: 70 mm (2.75 in)
Dynamic torque rating: +/-120 Nm (1056 in-lb)
Static torque rating: +/- 84.8 Nm (746 in-lb)
Floor-standing
Available in standard or axial/torsional configurations

FULL PRODUCT INFORMATION

Acumen 1 Specifications

Acumen 1 Specifications

	DIAGRAM	MODEL
LOAD FRAME SPECIFICATIONS¹	DETAIL	ACUMEN 1
Dynamic force²		1250 N (281 lbf)
Static force²		850 N (191 lbf)
Actuator dynamic stroke		70 mm (2.75 in)
Angular displacement		–
Dynamic performance		≤100 Hz
Minimum test space height³	A	26 mm (1.02 in)
Maximum test space height⁴	A	603 mm (23.74 in)
Working height⁵	B	133 mm (5.24 in)
Test space width
(measured between columns)	C	375 mm (14.76 in)
Base plate design		T-Slot
		(industry standard: 8 mm)
Column diameter	D	63.5 mm (2.5 in)
Frame footprint width	E	550 mm (21.62 in)
Frame footprint depth⁶	F	485 mm (19.09 in)
Overall width⁶
(with frame-mounted controller)	G	679 mm (26.73 in)
Overall height⁷	H	1511 mm (59.49 in)
Weight		159 kg (350 lb)
Noise level - typical⁸		47 dbA
Noise level - maximum⁸		69 dbA
Mounting		Tabletop: Vertical
Standard load cell		1.5 kN Accel Comp
Operating temperature		+5C° to +40C°
Cooling		Automated forced air
Electrical requirements⁹	Voltage - VAC	100-120 (200-240)
	Frequency - Hz	50 - 60
	Current - Amps	7 (4)
	Phase	Single

Acumen 3 and 12 Specifications

Acumen 3 and 12 Specifications

	DIAGRAM	MODEL
LOAD FRAME SPECIFICATIONS¹	DETAIL	ACUMEN 3	ACUMEN 3 A/T	ACUMEN 12	ACUMEN 12 A/T
Dynamic force²		3000 N (670 lbf)	3000 N (670 lbf)	12000 N (2697 lbf)	12000 N (2697 lbf)
Static force²		2000 N (450 lbf)	2000 N (450 lbf)	8500 N (1910 lbf)	8500 N (1910 lbf)
Dynamic torque rating		–	±30 Nm (265 in-lb)	–	±120 Nm (1056 in-lb)
Static torque rating		–	±21 Nm (185 in-lb)	–	±84.8 Nm (746 in-lb)
Actuator dynamic stroke		70 mm (2.75 in)	70 mm (2.75 in)	70 mm (2.75 in)	70 mm (2.75 in)
Angular displacement		–	±135°	–	±135°
			±20 revolutions		±20 revolutions
			0.001 rpm - 100 rpm		0.001 rpm - 100 rpm
			continuous rotation		continuous rotation
			to 350 rpm		to 100 rpm
Dynamic performance		≤100 Hz	≤100 Hz	≤100 Hz	≤100 Hz
Minimum test space height³	A	26 mm (1.02 in)	0 mm (0.00 in)	55 mm (2.17 in)	0 mm (0.00 in)
Maximum test space height⁴	A	819 mm (32.24 in)	603 mm (23.74 in)	985 mm (38.8 in)	810 mm (31.9 in)
Working height⁵	B	133 mm (5.24 in)	133 mm (5.24 in)	815 mm (32.1 in)	815 mm (32.1 in)
Test space width	C	460 mm (18.11 in )	460 mm (18.11 in )	460 mm (18.11 in )	460 mm (18.11 in )
(measured between columns)
Base plate design		T-Slot	T-Slot	T-Slot	T-Slot
		(industry standard: 8 mm)	(industry standard: 8 mm)	(industry standard: 14mm)	(industry standard: 14 mm)
Column diameter	D	63.5 mm (2.5 in)	63.5 mm (2.5 in)	76.2 mm (3 in)	76.2 mm (3 in)
Frame footprint width	E	634 mm (24.96 in)	634 mm (24.96 in)	651 mm (25.6 in)	651 mm (25.6 in)
Frame footprint depth⁶	F	501 mm (19.72 in)	501 mm (19.72 in)	817 mm (32.2 in)	817 mm (32.2 in)
Overall width⁶	G	764 mm (30.08 in)	764 mm (30.08 in)	805 mm (31.7 in)	805 mm (31.7 in)
(with frame-mounted controller)
Overall height⁷	H	1726 mm (67.95 in)	1726 mm (67.95 in)	2810 mm (110.7 in)	2810 mm (110.7 in)
Weight		188 kg (415 lb)	230 kg (507 lb)	953 kg (2100 lb)	1043 kg (2300 lb)
Noise level - typical⁸		47 dbA	47 dbA	62	62
Noise level - maximum⁸		69 dbA	69 dbA	78	78
Mounting		Tabletop: Vertical	Tabletop: Vertical	Floor: Vertical	Floor: Vertical
Standard load cell		3 kN Accel Comp	3 kN Accel Comp	12 kN Accel Comp	12 kN Accel Comp
Operating temperature		+5C° to +40C°	+5C° to +40C°	+5C° to +40C°	+5C° to +40C°
Cooling		Automated forced air	Automated forced air	Automated forced	Automated forced
				air & self contained	air & self contained
				water cooled	water cooled
Electrical requirements⁹	Voltage - VAC	200-240	200-240	200-240	200-240
	Frequency - Hz	50 - 60	50 - 60	50 - 60	50 - 60
	Current - Amps	10	20	38	38
	Phase	Single	Single	Single	Single

1.Specifications subject to change without notice.

2.Verifiable with MTS compression spring test. Performance may vary depending on test type, test set-up, frequency, specimen, environment and other factors.

3.Assumes standard system load cell installed, crosshead fully lowered and actuator fully extended to end of the dynamic stroke.

4.Assumes standard system load cell installed, crosshead fully raised and actuator fully retracted to end of the dynamic stroke.

5.From table to top of work surface; without optional isolation pads.

6.For systems with optional test area enclosure, add 98 mm (3.8 in.) to dimension F and 45 mm (1.8 in) to dimension G for overall system dimensions.

7.Measured with crosshead fully raised, without optional isolation pad.

8.Typical usage at 1 m, free field. Noise level varies depending upon test type, specimen, environment and other factors.

9.Acumen 1 current rated at 100 (200) VAC. Acumen 3 current rated at 200 VAC.

Biomedical Applications

Supporting the mission of biomedical researchers and manufacturers

Key options for biomedical testing:

12 kN force capacity
- Conducts orthopaedic studies to 4x body weight
Additional axial/torsional capability
- Higher speeds, higher torque and more continuous rotation to test a wider range of materials
Precise low-force measurement
- Easily tests fragile, intricate or lightweight specimen
Multi-sample fatigue fixture
- Triggers independent data acquisition for 15 samples at once

MTS MULTI-SAMPLE FATIGUE FIXTURE BROCHURE

Biomedical Specimen

Use MTS Acumen systems to test:

Orthopaedic constructs: small joints, c-spine, finger, ankle
Trauma devices: plates, screws, constucts
Biomaterials: plastics, soft tissues, hydrogels, ligaments, bones
Dental materials/devices: cements, plastics, metals
Vascular devices: stents, grafts
Packaging and consumables: needles, syringes, packaging, tubing

Downloads

MTS ACUMEN TEST SYSTEM BROCHURE

HIGH-FORCE DMA BROCHURE

Criterion® Electromechanical Test Systems

phranakornsoft — Mon, 27 Mar 2023 04:37:08 +0000

KEY PRODUCT FEATURES

Precise

Industry-leading 5000 Hz data acquisition rate provides better understanding of material characteristics

Accurate / Repeatable Results

Compact AC servomotor drives provide high-speed, low-vibration testing

Easy, Intuitive Use

TEDS-enabled load cells automatically download calibration information

Innovative Technology

TestSuite TW Software and custom test templates easily address complex tests

MODEL COMPARISON

Models C41 & C42

Maximum rated force capacity:
- C41.103: 1 kN (220 lbf)
- C42.503: 5 kN (1100 lbf)
Single-column
Tabletop
Standard and extended height

Model C43

Maximum rated force capacity:
- C43.104: 10 kN (2200 lbf)
- C43.304: 30 kN (6600 lbf)
- C43.504: 50 kN (11000 lbf)
Dual-column
Tabletop
Standard and extended height

Model C44

Maximum rated force capacity:
- C44.304: 30 kN (6600 lbf)
Dual-column
Floor-standing
Standard and extended height

Model C45

Maximum rated force capacity:
- C45.504: 50 kN (11000 lbf)
- C45.105: 100 kN (22500 lbf)
- C45.305: 300 kN (66000 lbf)
- C45.605: 600 kN (132000 lbf)
Dual-column
Floor-standing
Standard and extended height
Wide and multihead configurations available

FULL PRODUCT INFORMATION

Detailed Technical Specifications - Comparative

MTS CRITERION SERIES 40 SPECIFICATIONS - COMPARATIVE

Model 41

Model 42

Model 43

Model 44

C41.103

C42.503

C43.104

C43.304

C43.504

C44.304

Maximum Rated Force Capacity

kN lbf

220

1100

2200

6600

11000

6600

Force Capacity Options

N, kN

1 N, 5 N, 25 N,

50 N, 100 N, 250 N,

500 N, 1 kN

1 N, 5 N, 10 N,

25 N, 50 N, 100 N,

250 N, 500 N,

1 kN, 2 kN, 5 kN

100 N, 250 N,

500 N, 1 kN,

2.5 kN, 5 kN, 10 kN

100 N, 250 N,

500 N, 1 kN, 2.5 kN,

5 kN, 10 kN,

20 kN, 30 kN

100 N, 250 N,

500 N, 1 kN, 2.5 kN,

5 kN, 10 kN, 20 kN,

30 kN, 50 kN

100 N, 250 N,

500 N, 1 kN,

2.5 kN, 5 kN,

10 kN, 20 kN, 30 kN,

lbf

02, 1, 5, 10, 20,

50, 110, 220

0.2, 1, 2, 5, 10, 20, 50,

110, 220, 450, 1100

20, 50, 110, 220,

500, 1100, 2200

20, 50, 110, 220,

500, 1100, 2200

4400, 6600

20, 50, 110, 220,

500, 1100, 2200

4400, 6600, 11000

20, 50, 110, 220,

500, 1100, 2200

4400, 6600

Frame Type

Guide Columns Floor-standing/

Tabletop

Floor-standing

Test Zones

Single/Dual

Single

Single or Dual

Maximum Test Speed

mm/min

in/min

3000

118

2000

78.7

2000

78.7

1020

40.16

750

1020

40.1

Minimum Test Speed

mm/min

in/min

0.005

0.0002

0.005

0.0002

0.005

0.0002

0.005

0.0002

0.005

0.0002

0.005

0.0002

Position Resolution

0.00005

0.000002

0.00005

0.000002

0.00005

0.000002

0.00006

0.0000024

0.00006

0.0000024

0.00006

0.0000024

Power Requirements

V AC

phase

200 - 230 V AC,

5 Amps,

50 / 60 Hz,

1000 W

200 - 230 V AC,

5 Amps,

50 / 60 Hz,

1000 W

200 - 230 V AC,

10 Amps,

50 / 60 Hz,

2000 W

200 - 230 V AC,

12 Amps,

50 / 60 Hz,

2400 W

200 - 230 V AC,

12 Amps,

50 / 60 Hz,

2400 W

200 - 230 V AC,

12 Amps,

50 / 60 Hz,

2400 W

Space Between

100*

425

420

400

Columns

3.94*

16.73

16.54

15.75

Vertical Test Space

Standard Length

1100

43.31

820

32.3

1200

47.2

1200

47.2

1200

47.2

1190

46.9

Extended Length

mm in

1120

44.1

1500

59.1

1500

59.1

1500

59.1

1490

58.7

Crosshead Travel

Standard Length

900

35.4

650

25.6

1000

39.4

1000

39.4

1000

39.4

1000

39.4

Extended Length

mm in

950

37.4

1300

51.2

1300

51.2

1300

51.2

1300

51.2

Frame Height

Standard Length

1520

59.84

1332

52.44

1616

63.6

1752

68.97

1752

68.97

1951

76.8

Extended Length

mm in

1632

64.25

1916

75.43

2052

80.78

2052

80.78

2251

88.6

Frame Width

560

22.05

704

27.7

794

31.3

826

32.5

826

32.5

861

33.9

Frame Depth

530

20.87

636

757

29.8

768

30.2

768

30.2

689

27.1

Frame Weight

Standard Length

132

112

246

175

385

305

671

305

671

395

869

Extended Length

kg lb

125

275

190

418

325

715

325

715

410

902

* For single-column load frames this measurement denotes the distance between grip center and column cover

		Model 45
		C45.504	C45.504 Wide	C45.105	C45.305	C45.605
Maximum Rated Force Capacity	kN lbf	50 11000	50 11000	100 22500	300 66000	600 132000
Force Capacity Options	N, kN	1 kN, 2.5 kN,	1 kN, 2.5 kN,	1 kN, 2.5 kN,	150 kN, 200 kN,	500 kN, 600 kN,
		5 kN, 10 kN,	5 kN, 10 kN,	5 kN, 10 kN,	300kN
		20 kN, 30 kN,	20 kN, 30 kN,	20 kN, 30 kN,
		50 kN	50 kN	50 kN, 100 kN,
	lbf	220, 500, 1100,	220, 500, 1100,	220, 500, 1100,	33000, 44000,	112400, 132000
		2200, 4400,	2200, 4400,	2200, 4400, 6600,	66000
		6600, 11000	6600, 11000	11000, 22500
Frame Type	Guide Columns Floor-standing/ Table-top	2 Floor-standing	2 Floor-standing	2 Floor-standing	2 Floor-standing	2 Floor-standing
Test Zones	Single/Dual	Single or Dual	Single	Single or Dual	Single	Single
Maximum Test Speed	mm/min	750	750	750	750	254
	in/min	30	29.53	30	30	10
Minimum Test Speed	mm/min	0.005	0.005	0.005	0.005	0.005
	in/min	0.0002	0.0002	0.0002	0.0002	0.0002
Position Resolution	mm	0.000047	0.000047	0.000047	0.000049	0.000016
	in	0.0000019	0.0000019	0.0000019	0.0000019	0.0000000
Power Requirements	V AC phase	200 - 230 V AC, 12 Amps, 50 / 60 Hz, 2400 W 1	200 - 230 V AC, 12 Amps, 50 / 60 Hz, 2400 W	200 - 230 V AC, 22 Amps, 50 / 60 Hz, 4400 W 1	380 - 480 V AC, 20 Amps, 50 / 60 Hz, 9000 W 3	380 - 480 V AC, 20 Amps, 50 / 60 Hz, 5200 W 3
Space Between	mm	600	1000	600	650	750
Columns	in	23.62	39.37	23.62	25.59	29.52
Vertical Test Space
Standard Length	mm	1220	1520	1220	1540	2000
	in	48.0	59.81	48.0	60.63	78.74
Extended Length	mm	1520		1520	1840
	in	59.8		59.8	72.44
Crosshead Travel
Standard Length	mm	1000	1300	1000	1100	1750
	in	39.4	51.18	39.4	43.31	68.90
Extended Length	mm	1300		1300	1400
	in			51.2	55.12
Frame Height
Standard Length	mm	2269	2554	2269	2535	3490
	in	89.3	100.6	89.3	99.8	137.4
Extended Length	mm	2569		2569	2835
	in	101.1		101.1	111.61
Frame Width	mm	1315	1710	1315	1362	1660
	in	51.77	67.32	51.77	53.6	65.35
Frame Depth	mm	957	957	957	1100	1272
	in	37.7	37.68	37.7	43.31	50.08
Frame Weight
Standard Length	kg	1195	1700	1195	1605	3500
	lb	2629	3748	2629	3538	7700
Extended Length	kg	1265		1265	1695
	lb	2783		2783	3737

Detailed Technical Specifications - Common

MTS CRITERION SERIES 40 SPECIFICATIONS - COMMON

Low Profile Force Accuracy* (Bending Beam and Shear Beam)	± 0.5% of applied force	± 1.0% of applied force
Low Profile Force Range** (Bending Beam and Shear Beam)	1 to 100% of rated force capacity	0.5 to 1% of force rated capacity
S-Beam Force Accuracy*	± 1.0% of applied force
S-Beam Force Range**	1 to 100% of rated force capacity
Rated Force Capacity at Max Test Speed	100%
Maximum Test Speed at Rated Force Capacity	100%
Speed Accuracy	Set speed < 0.01mm/min: speed accuracy is within ± 1.0% of set speed Set speed ≥ 0.01mm/min: speed accuracy is within ± 0.5% of set speed
Position Accuracy	within ± 0.5%
Strain Accuracy***	± 0.5% of applied strain
Security Protection	Over-force, travel limits, over-voltage and others
Over-Force Protection	110%
Data Acquisition Rate	Up to 5000 Hz
Control Loop Rate	5000 Hz
Environmental Requirements Operating Temperature Operating Humidity Storage Temperature Maximum Storage Humidity Maximum Altitude	5 to 40°C 41 to 104°F 5 to 85% Non-condensing -18 to 49°C 0 to 120°F 90% Non-condensing 2000 Meters
Motor & Drive System	AC Servo Motor
Ballscrews	Pre-Loaded
Position Measurement	Encoder
User Digital Inputs/Outputs (DIO)	4 user Digital Inputs and 4 user Digital Outputs
Encoder Capacity	4 Encoders

* Applicable onsite calibration services are available to meet ISO 7500-1, ASTM E4.

** Range dependent upon controller settings and operating environment.

*** Extensometer calibration services are available to meet ISO 9513, ASTM E83.

Shipping Information

SHIPPING INFORMATION

MODEL 41

MODEL 42

MODEL 43

MODEL 44

C41.103

C42.503

C43.104

C43.304

C43.504

C44.304

Standard Length Frame

Dimensions - Crated

Weight - Crated

820 x 1100 x 1760

32.28 x 43.31 x 69.29

110

242.5

1200 x 960 x 1570

47.2 x 37.8 x 61.8

247

543.3

1036 x 956 x 1865

40.8 x 37.6 x 73.4

312

686.4

2040 x 1140 x 1160

80.31 x 44.88 x 45.67

560

1232

2040 x 1140 x 1160

80.31 x 44.88 x 45.67

560

1232

2165 x 1100 x 930

85.24 x 43.31 x 36.6

600

1320

Extended Length Frame

Dimensions - Crated

Weight - Crated

1120 x 1070 x 1920

44.1 x 42.1 x 75.59

326

717.2

1150 x 1110 x 2200

45.27 x 43.7 x 86.6

438

963.6

2340 x 1140 x 1160

92.1 x 44.88 x 45.67

580

1276

2340 x 1140 x 1160

92.1 x 44.88 x 45.67

580

1276

2465 x 1100 x 930

97.05 x 43.31 x 36.6

695

1529

				MODEL 45
		C45.504	C45.504 Wide	C45.105	C45.305	C45.605
Standard Length Frame Dimensions - Crated Weight - Crated	mm in kg lb	2620 x 1620 x 1600 116.5 x 78.74 x 55.5 1880 4136	2960 x 2000 x 1410 116.5 x 78.74 x 55.5 2150 4739	2620 x 1620 x 1600 103.15 x 63.78 x 62.99 1880 4236	114.96 x 65.35 x 65.35 2010 4422	3680 x 1960 x 1760 144.89 x 77.17 x 69.29 4050 8928
Extended Length Frame Dimensions - Crated Weight - Crated	mm in kg lb	2920 x 1620 x 1600 114.96 x 63.78 x 62.99 1980 4356	-	2920 x 1620 x 1600 114.96 x 63.78 x 62.99 1980 4356	3220 x 1660 x 1660 126.77 x 65.35 x 65.35 2210 4862	-

Downloads

MTS CRITERION 40 BROCHURE

MTS CRITERION ACCESSORIES CATALOG
