Multi-Axial Simulation Table (MAST) Systems

Multi-Axial Simulation Table (MAST) Systems

Apply force and motion in six degrees of freedom to components and subsystems to evaluate their behavior under a diverse array of real-world vibration phenomena. Available in a broad range of capacities, MTS hexapod systems employ versatile FlexTest® controls and renowned RPC® software to meet test needs across the automotive, aerospace and civil engineering industries.

Durability
Noise and Vibration
Vibration Transmissibility
Ride comfort
Modal Evaluation
Characterization
Thermal Characterization
Seismic Certification

Sub-Systems

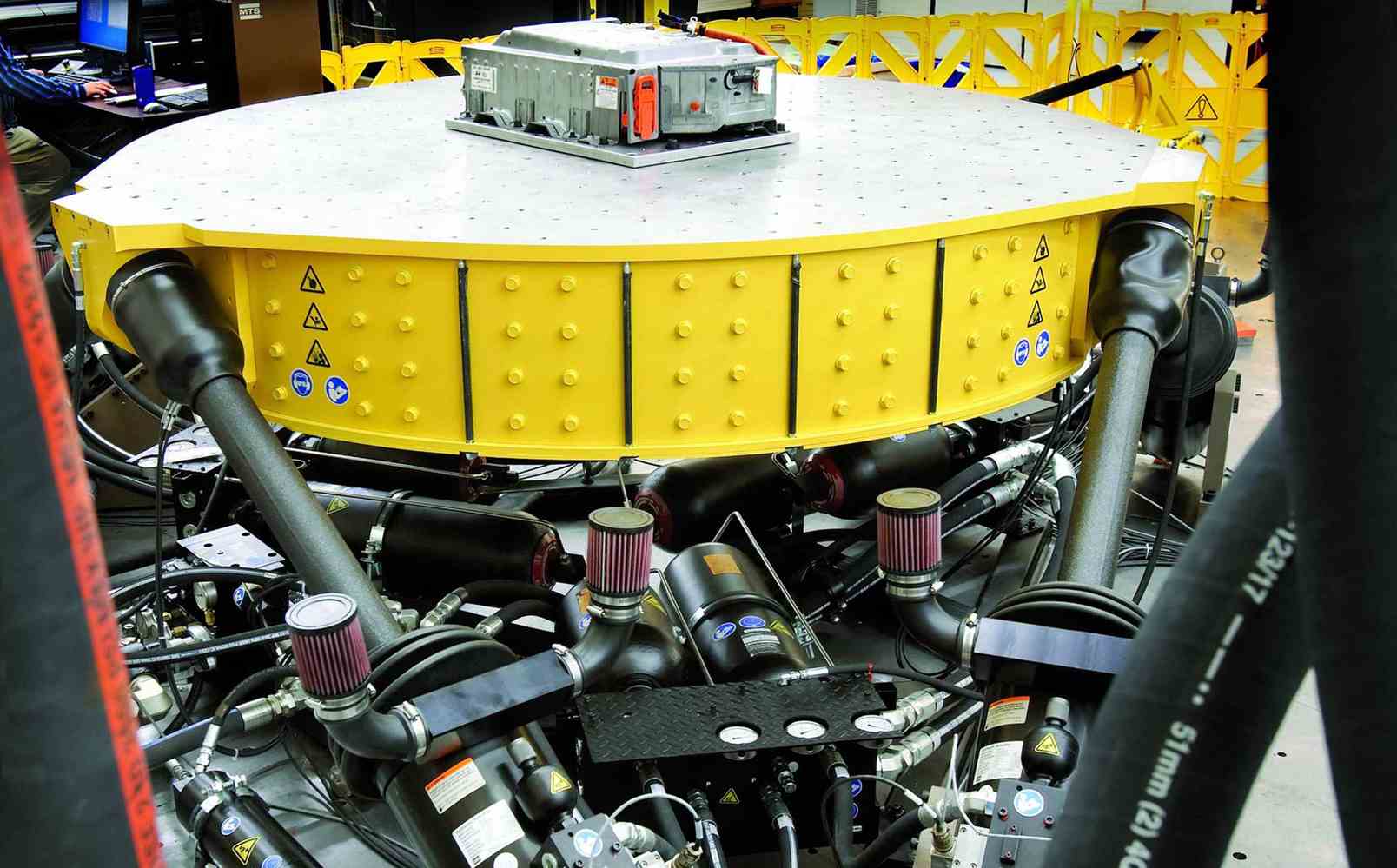

Batteries and Battery Carriages

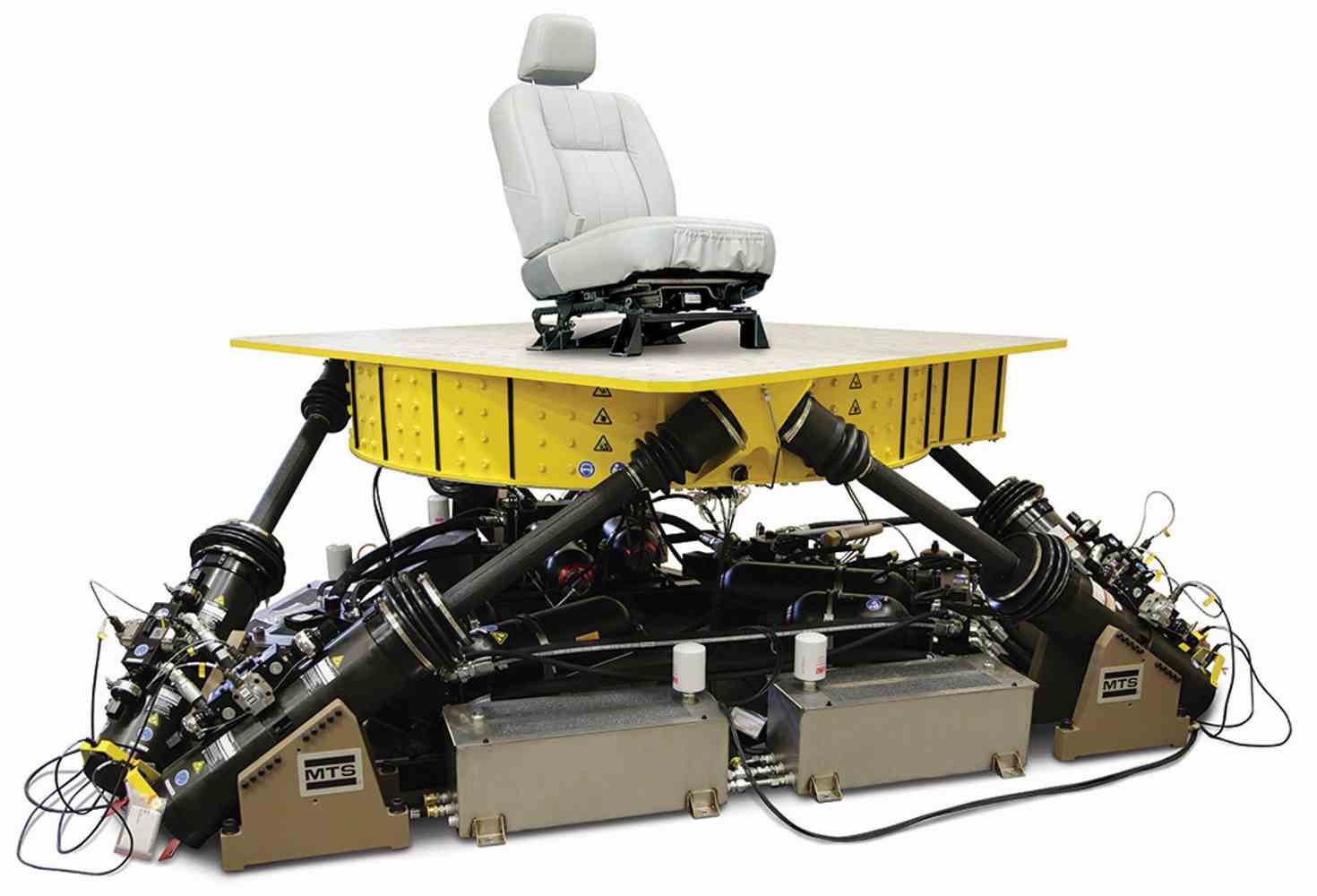

Seats
Body Components

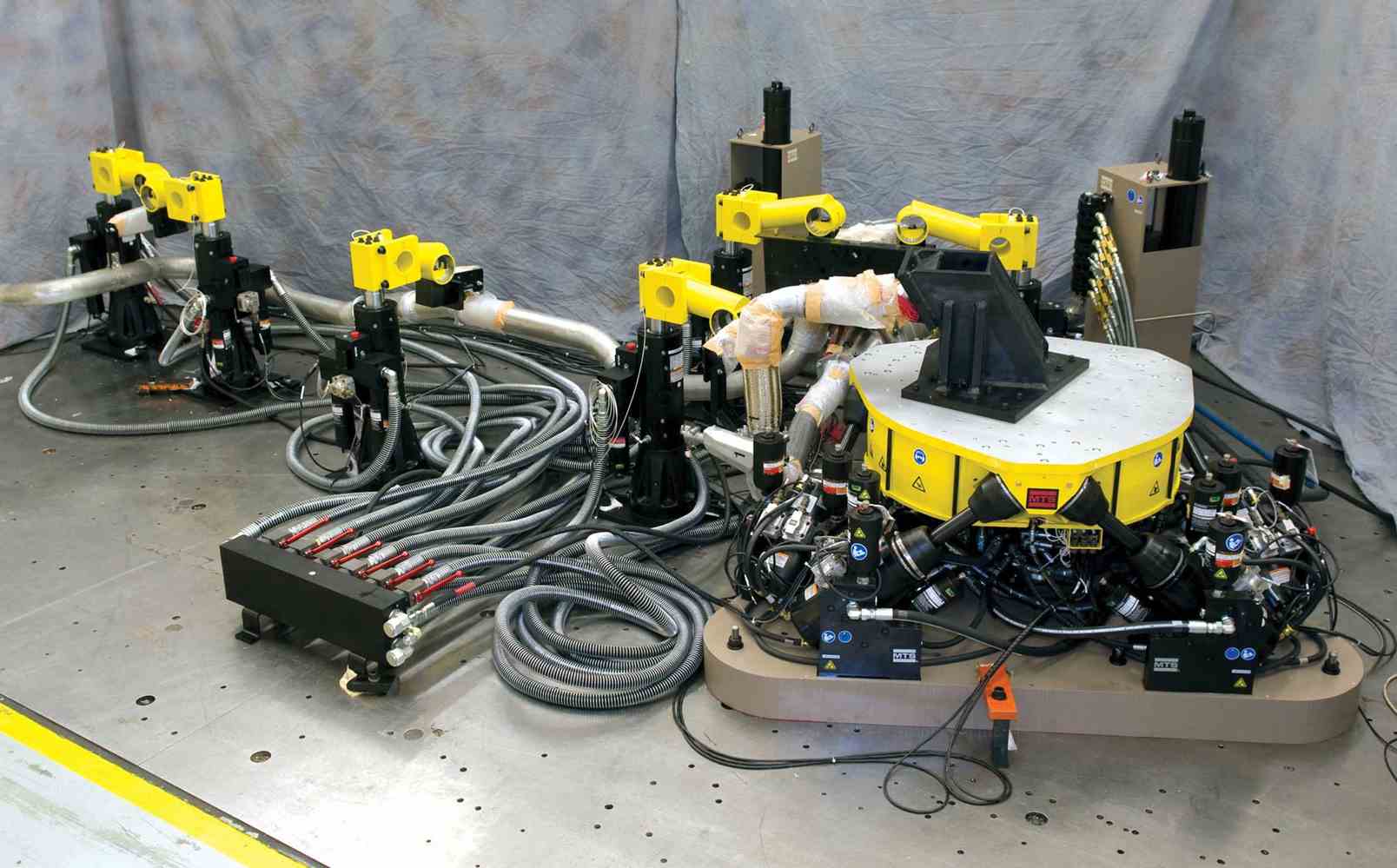

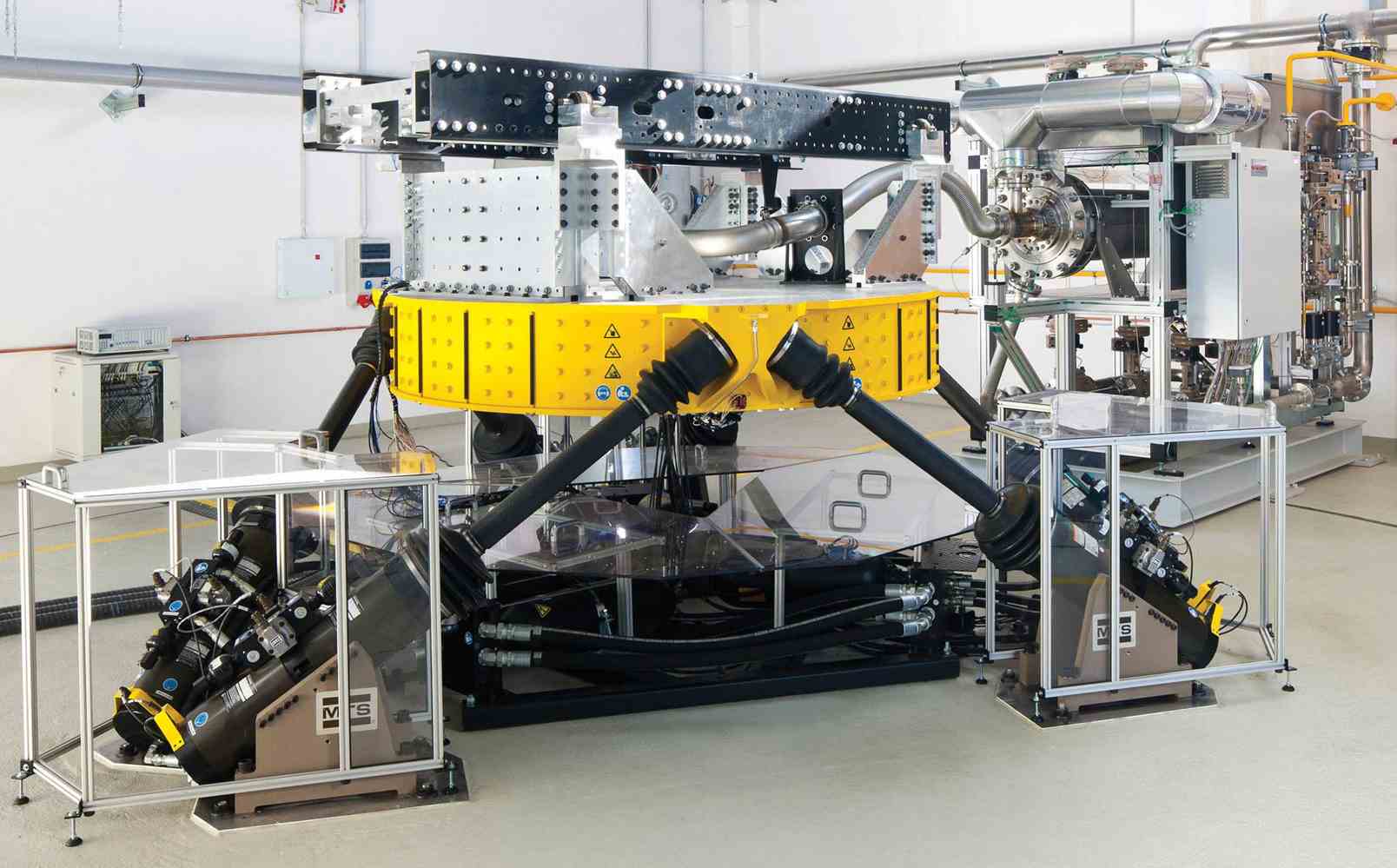

Exhaust Systems
Cooling Systems
Engine Mounts
Dashboards and Electronics

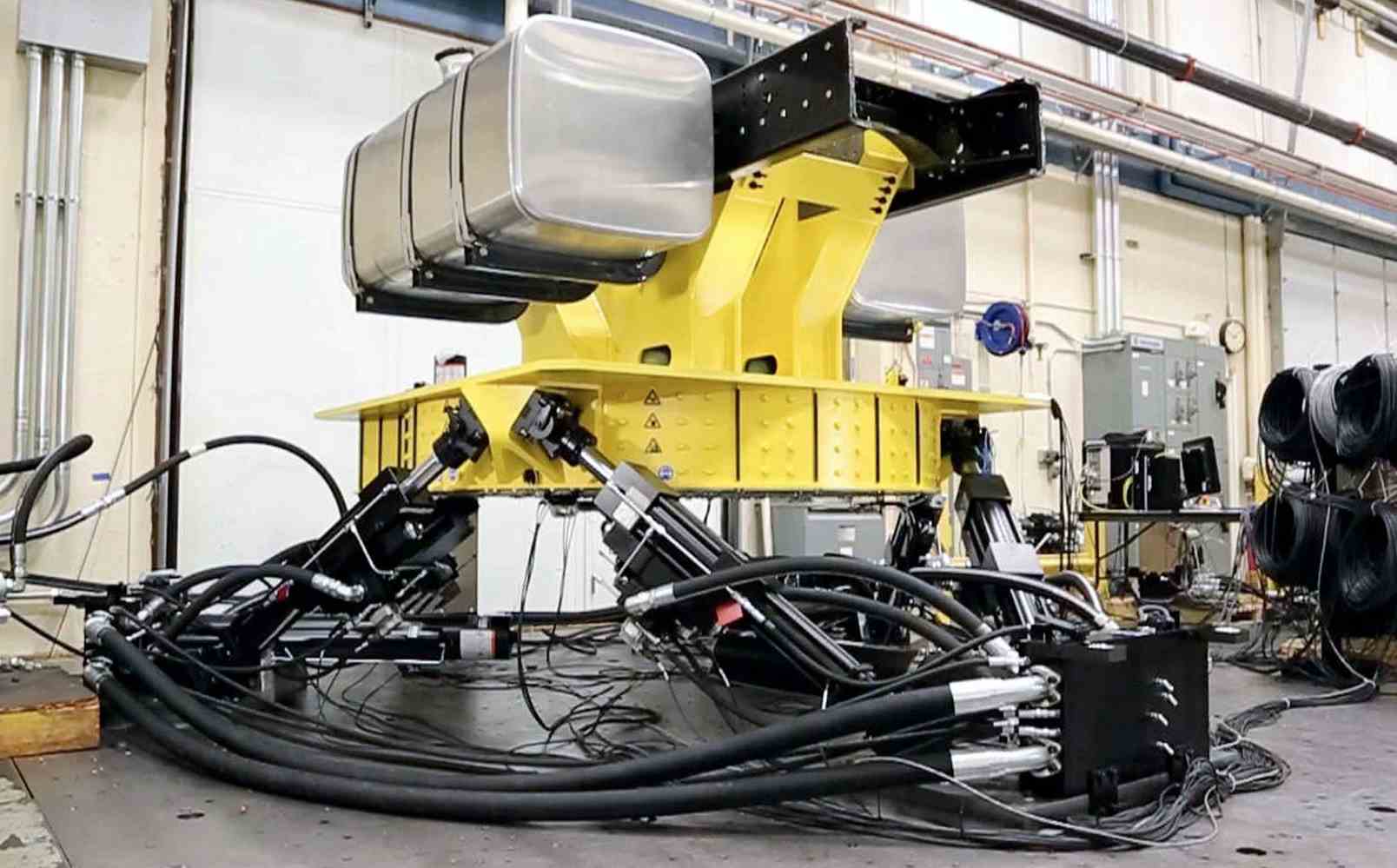

Fuel and Storage Tanks

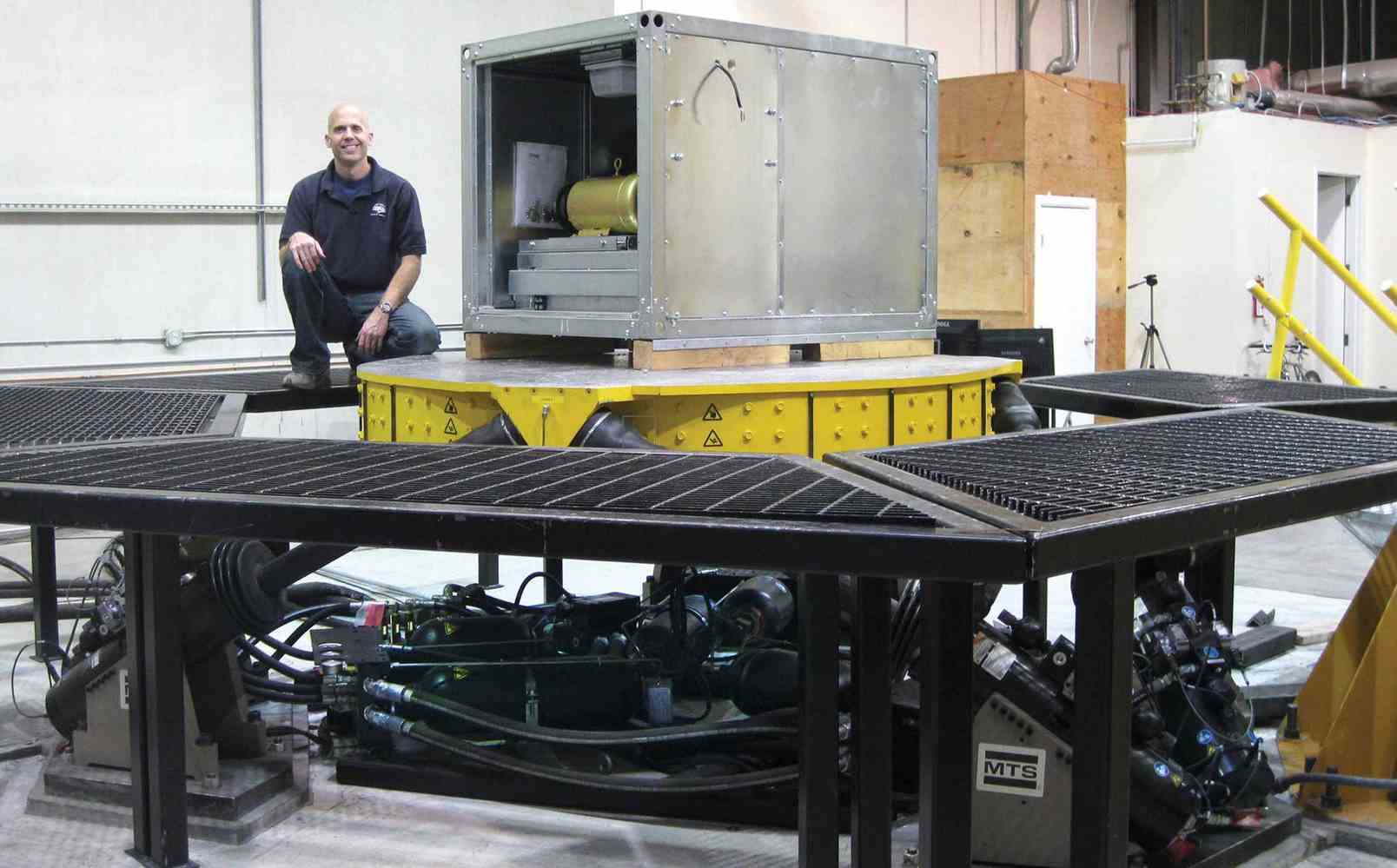

Non-structural Systems and Equipment

AC156 Earthquake Qualification Testing
ISO 12405 Lithium-Ion Battery Testing
ISO 13849-1
ISO 13090-1
ISO 2631-1

true

Video Product

KEY PRODUCT FEATURES

Accurate / Repeatable Results

Employs advanced Degree-of-Freedom Control and Three-variable Control technologies

Industry Standard

MTS has more than three decades of multi-axial testing expertise and maintains the world’s largest installed base of multi-axial simulation tables

Versatile

Deployed world-wide, meeting test requirements across a diverse range of industries

Advanced Safety Features

Integrates innovative distribution manifold technology to ensure safe, predictable hydraulic flow to the test system

MODEL COMPARISON

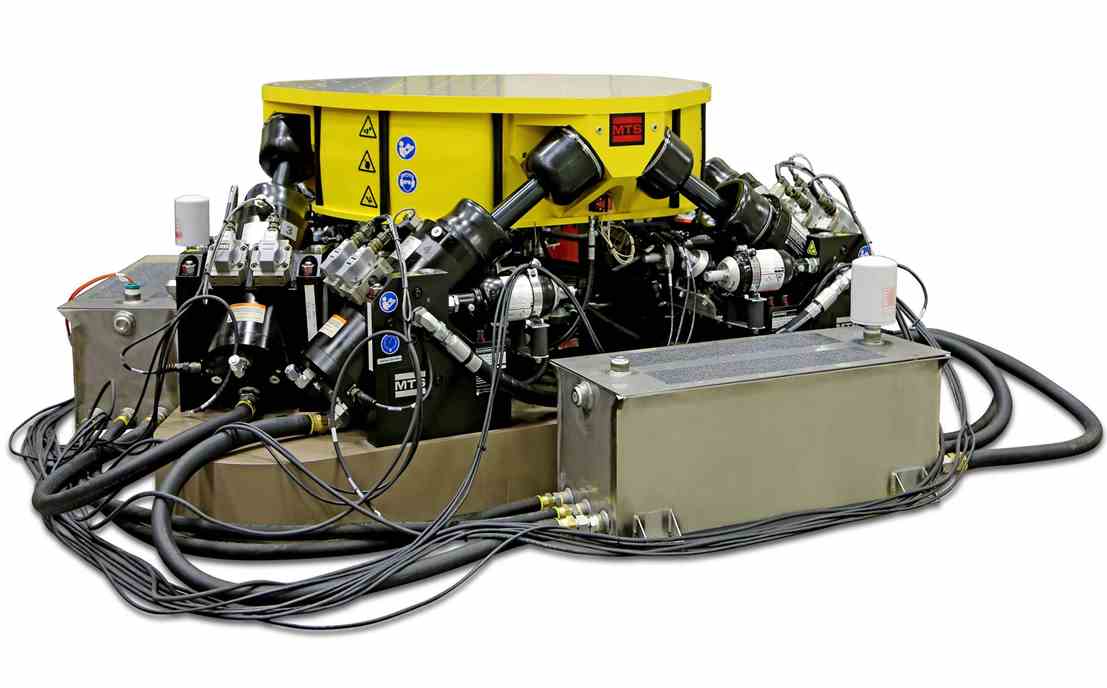

Model 353.10

1 meter round table
Up to 500 kg payload
Up to 500 Hz control bandwidth
Durability applications
NVH applications
Environmental chamber integration
Anechoic chamber integration

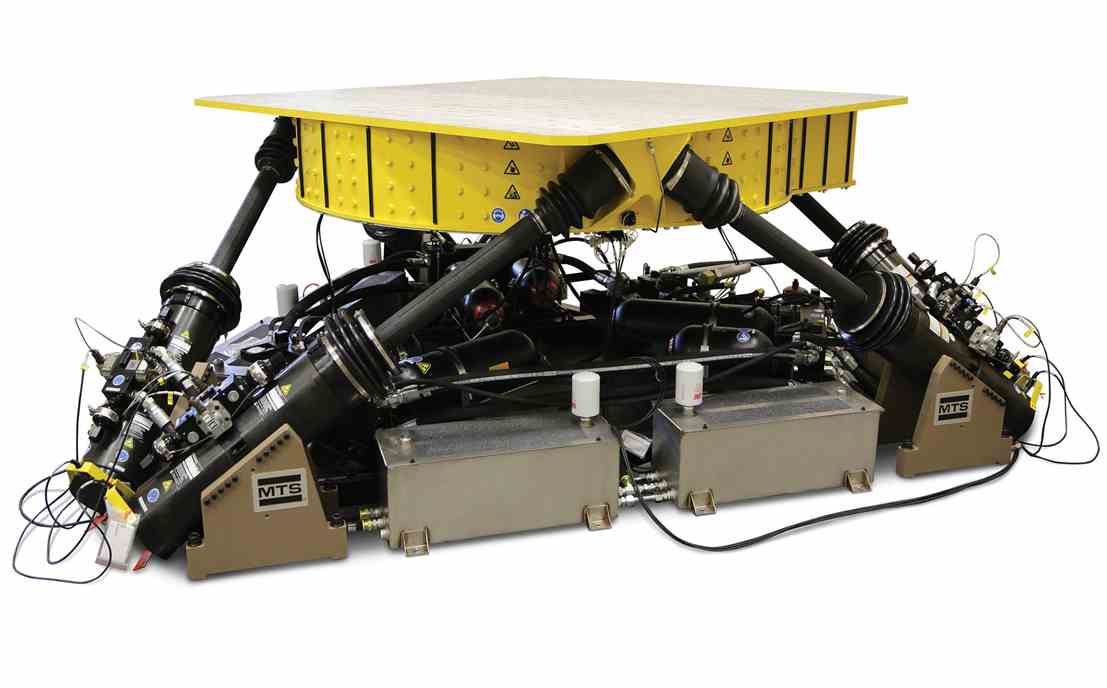

Model 353.20

2 meter round or 2.2 meter square table
Up to 1,000 kg payload
Up to 150 Hz control bandwidth
Durability applications
Ride Comfort applications

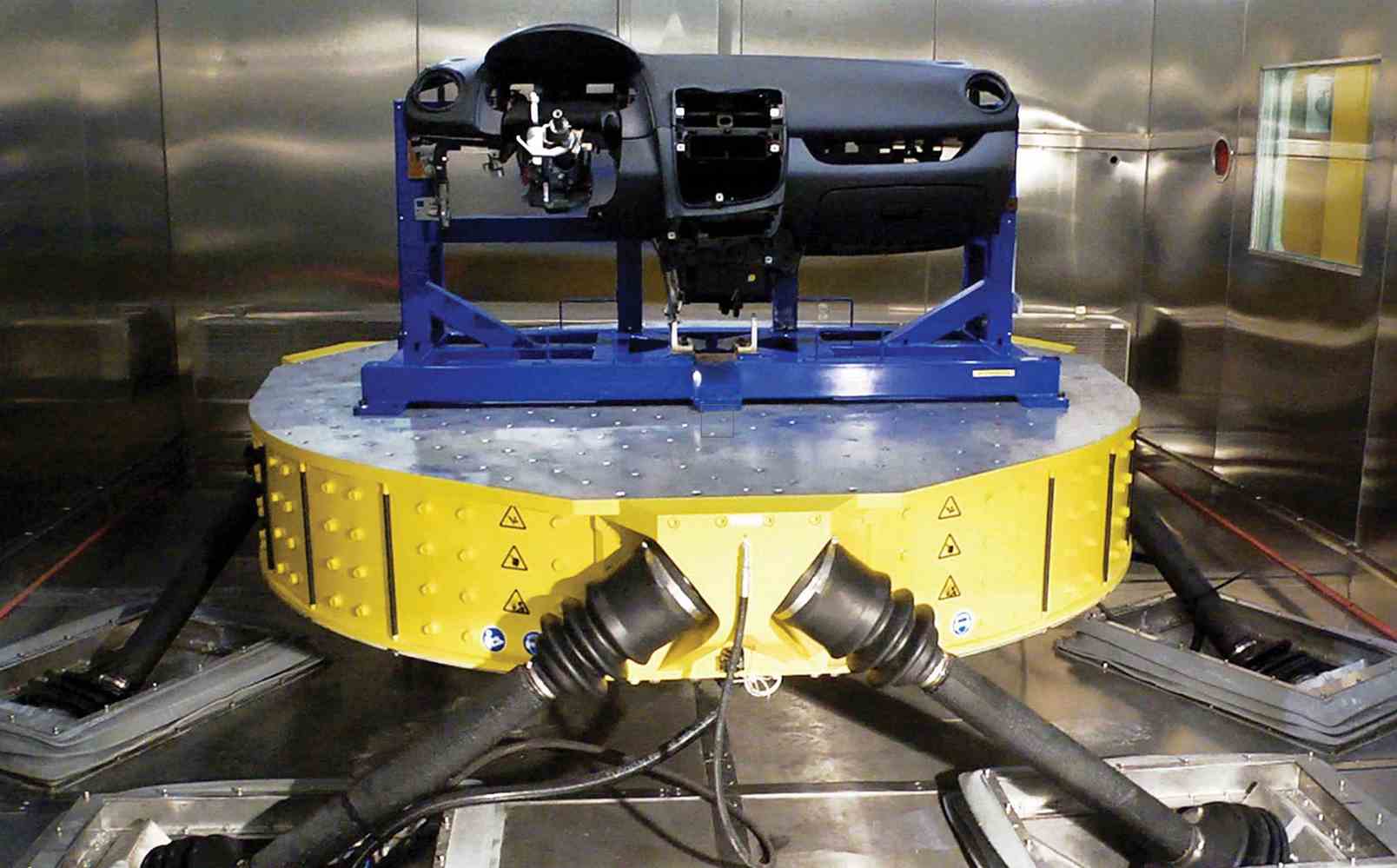

Environmental chamber integration

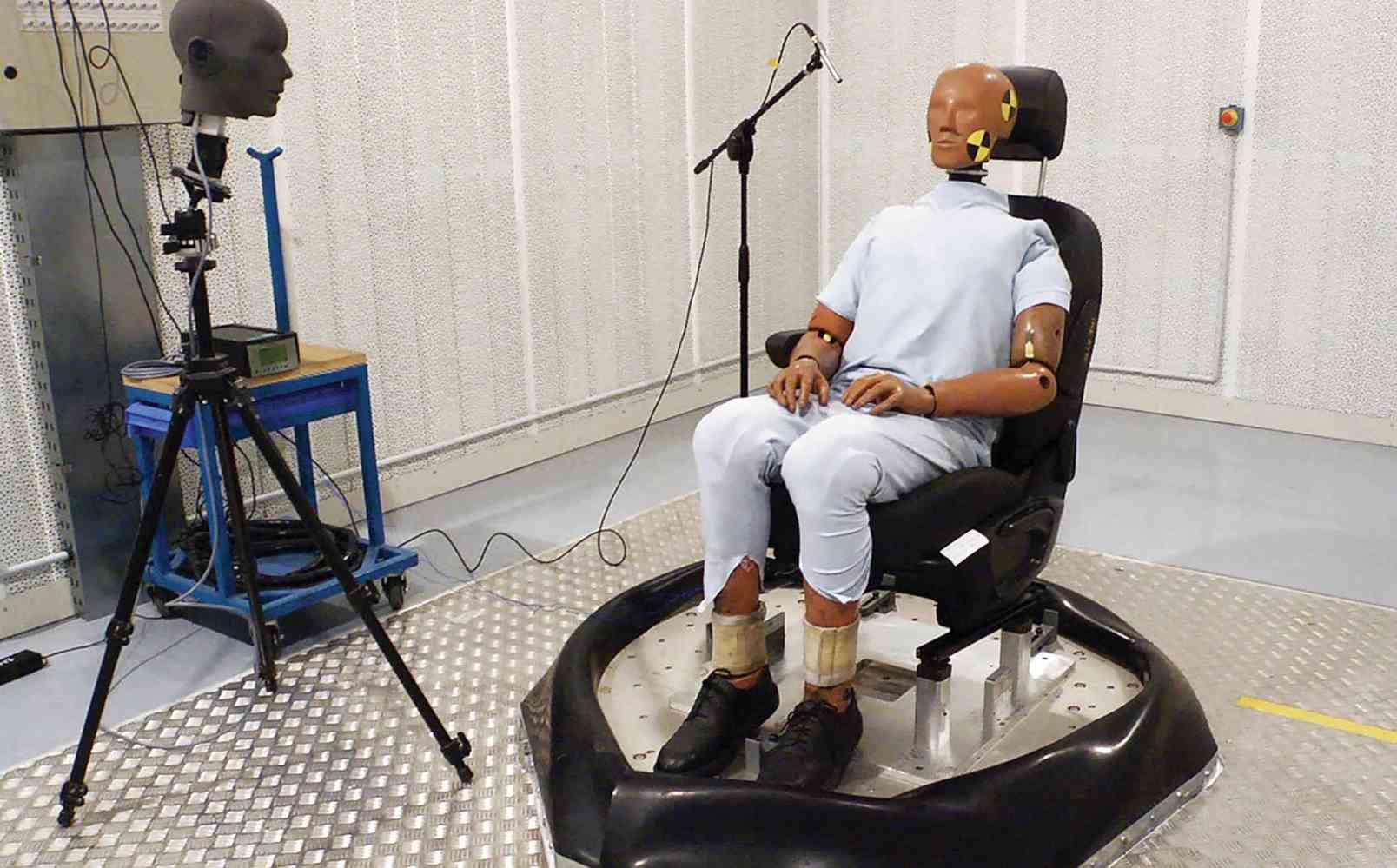

Anechoic chamber integration

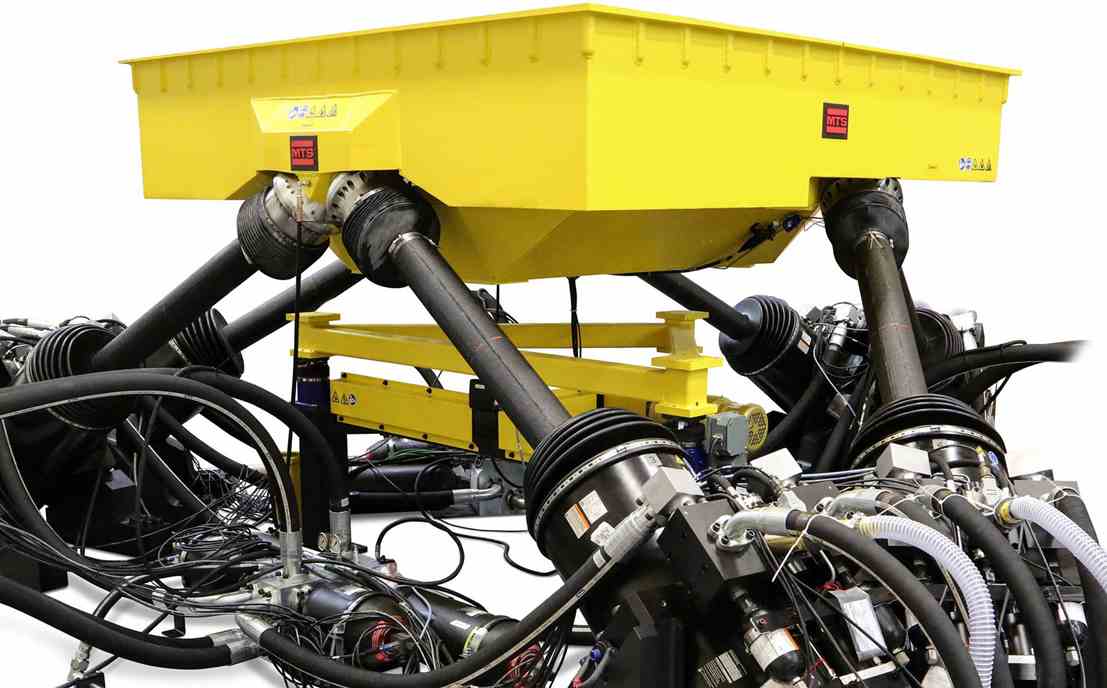

Model 353.50

2.5 meter square table
Up to 3,000 kg payload
Up to 100 Hz control bandwidth
Heavy-duty Durability applications
Seismic applications

Model 345.20

2 meter round or 2.2 meter square table
Up to 2,000 kg payload
Up to 100 Hz control bandwidth
Heavy-duty Durability applications
Seismic applications

TECHNICAL OVERVIEW

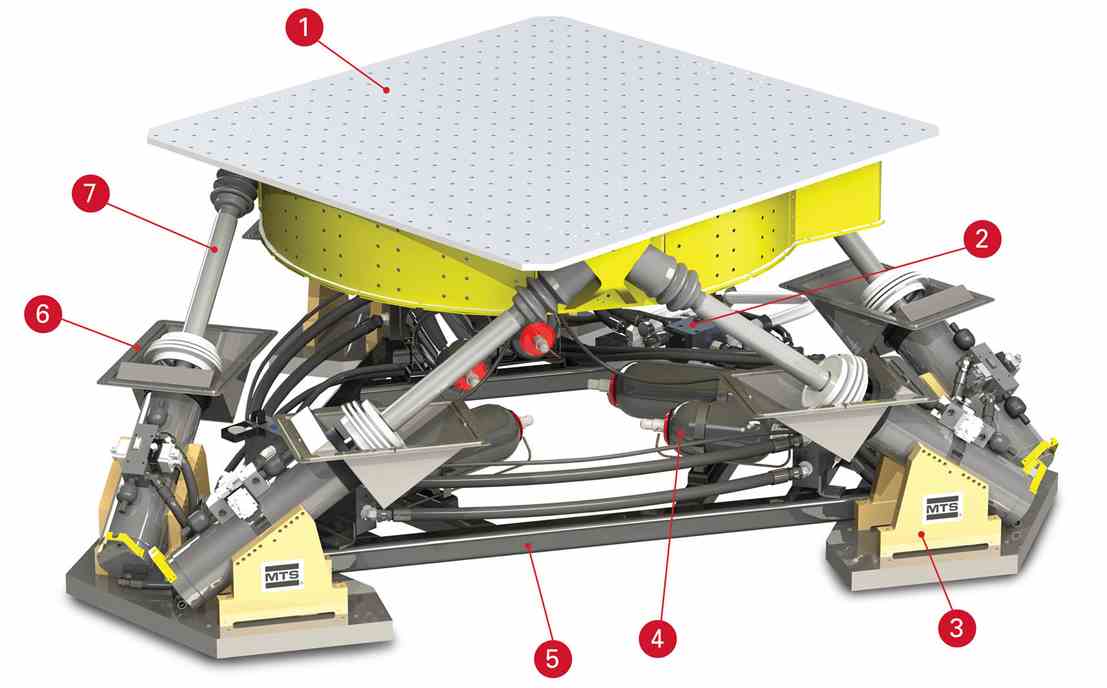

System Diagram

Table
Integrated hydraulic control manifold with optional isolation
Fixed actuator assembly
Close-coupled accumulation
Mounting frame
Optional chamber floor interface
Swivel and strut assembly

Integrated Lab Diagram

Specifications: Model 353.10

	Units	353.10 Round Table
Table Size	mm	1.0 dia.
	ft	3.3 dia.
Simulation Frequency (bare table)	Hz	0.8-500
Simulation Frequency (max payload)	Hz	0.8-250
Maximum Payload	kg	500
	lbs	1102
Table Mounting Pattern	mm	100 x 100
	in	3.94 x 3.94
Actuator Peak Force 172 bar - 353.10 210 bar - 353.20 & 354.20	kN	22.2
	kip	5.0
Linear Displacement
Vertical (Z)	± mm	36
	± in	1.42
Lateral (Y)	± mm	31
	± in	1.22
Longitudinal (X)	± mm	35
	± in	1.38
Angular Displacement
Roll	± deg	4.6
Pitch	± deg	4.1
Yaw	± deg	3.5
Linear Velocity
Vertical (Z)	mm/s	950
	in/s	37.4
Lateral (Y)	mm/s	850
	in/s	33.47
Longitudinal (X)	mm/s	850
	in/s	33.47
Angular Velocity
Roll	deg/s	140
Pitch	deg/s	130
Yaw	deg/s	105
Linear Acceleration (bare table)
Vertical (Z)	g	27.0
Lateral (Y)	g	19.5
Longitudinal (X)	g	21.0
Linear Acceleration (max payload)
Vertical (Z)	g	10.0
Lateral (Y)	g	7.0
Longitudinal (X)	g	7.8

Specifications: Model 353.20

	Units	353.20 Round Table	353.20 Square Table
Table Size	mm	2.0 dia.	2.2 x 2.2
	ft	6.8 dia.	7.2 x 7.2
Simulation Frequency (bare table)	Hz	0.8-150	0.8-150
Simulation Frequency (max payload)	Hz	0.8-100	0.8-100
Maximum Payload	kg	680	680
	lbs	1499	1499
Table Mounting Pattern	mm	100 x 100	100 x 100
	in	3.94 x 3.94	3.94 x 3.94
Actuator Peak Force 172 bar - 353.10 210 bar - 353.20 & 354.20	kN	70.6	70.6
	kip	15.9	15.9
Linear Displacement
Vertical (Z)	± mm	145	145
	± in	5.71	5.71
Lateral (Y)	± mm	115	115
	± in	4.53	4.53
Longitudinal (X)	± mm	130	130
	± in	5.12	5.12
Angular Displacement
Roll	± deg	8.5	8.5
Pitch	± deg	7.5	7.5
Yaw	± deg	6	6
Linear Velocity
Vertical (Z)	mm/s	1200	1200
	in/s	47.24	47.24
Lateral (Y)	mm/s	900	900
	in/s	35.43	35.43
Longitudinal (X)	mm/s	1000	1000
	in/s	39.37	39.37
Angular Velocity
Roll	deg/s	78	78
Pitch	deg/s	70	70
Yaw	deg/s	50	50
Linear Acceleration (bare table)
Vertical (Z)	g	18.1	16.0
Lateral (Y)	g	14.1	12.5
Longitudinal (X)	g	16.7	14.8
Linear Acceleration (max payload)
Vertical (Z)	g	11.1	10.3
Lateral (Y)	g	8.6	8.0
Longitudinal (X)	g	10.2	9.5

Specifications: Model 353.20 High Performance (HP)

	Units	353.20 HP Round Table	353.20 HP Square Table
Table Size	mm	2.0 dia.	2.2 x 2.2
	ft	6.8 dia.	7.2 x 7.2
Simulation Frequency (bare table)	Hz	0.8-150	0.8-150
Simulation Frequency (max payload)	Hz	0.8-100	0.8-100
Maximum Payload	kg	1000	1000
	lbs	2205	2205
Table Mounting Pattern	mm	100 x 100	100 x 100
	in	3.94 x 3.94	3.94 x 3.94
Actuator Peak Force 172 bar - 353.10 210 bar - 353.20 & 354.20	kN	70.6	70.6
	kip	15.9	15.9
Linear Displacement
Vertical (Z)	± mm	140	140
	± in	5.51	5.51
Lateral (Y)	± mm	110	110
	± in	4.33	4.33
Longitudinal (X)	± mm	125	125
	± in	4.92	4.92
Angular Displacement
Roll	± deg	8	8
Pitch	± deg	7	7
Yaw	± deg	5.5	5.5
Linear Velocity
Vertical (Z)	mm/s	1200	1200
	in/s	47.24	47.24
Lateral (Y)	mm/s	900	900
	in/s	35.43	35.43
Longitudinal (X)	mm/s	1000	1000
	in/s	39.37	39.37
Angular Velocity
Roll	deg/s	78	78
Pitch	deg/s	70	70
Yaw	deg/s	50	50
Linear Acceleration (bare table)
Vertical (Z)	g	18.1	16.0
Lateral (Y)	g	14.1	12.5
Longitudinal (X)	g	16.7	14.8
Linear Acceleration (max payload)
Vertical (Z)	g	9.4	8.8
Lateral (Y)	g	7.3	6.8
Longitudinal (X)	g	8.7	8.1

Specifications: Model 353.50

353.50 Square Table
Table Size	mm	2.5 x 2.5
	ft	8.2 x 8.2
Simulation Frequency (bare table)	Hz	0.8-100
Simulation Frequency (max payload)	Hz	0.8-100
Maximum Payload	kg	3000
	lbs	6600
Table Mounting Pattern	mm	200 x 200
	in	7.9 x 7.9
Actuator Peak Force 172 bar - 353.10 210 bar - 353.20 & 354.20	kN	250
	kip	56.2
Linear Displacement
Vertical (Z)	± mm	164
	± in	6.46
Lateral (Y)	± mm	170
	± in	6.69
Longitudinal (X)	± mm	200
	± in	7.87
Angular Displacement
Roll	± deg	10
Pitch	± deg	10
Yaw	± deg	8.4
Linear Velocity
Vertical (Z)	mm/s	2180
	in/s	85.83
Lateral (Y)	mm/s	1800
	in/s	70.87
Longitudinal (X)	mm/s	1740
	in/s	68.5
Angular Velocity
Roll	deg/s	110
Pitch	deg/s	110
Yaw	deg/s	90
Linear Acceleration (bare table)
Vertical (Z)	g	16.0
Lateral (Y)	g	8.5
Longitudinal (X)	g	7.5
Linear Acceleration (max payload)
Vertical (Z)	g	9.5
Lateral (Y)	g	5.5
Longitudinal (X)	g	6.0

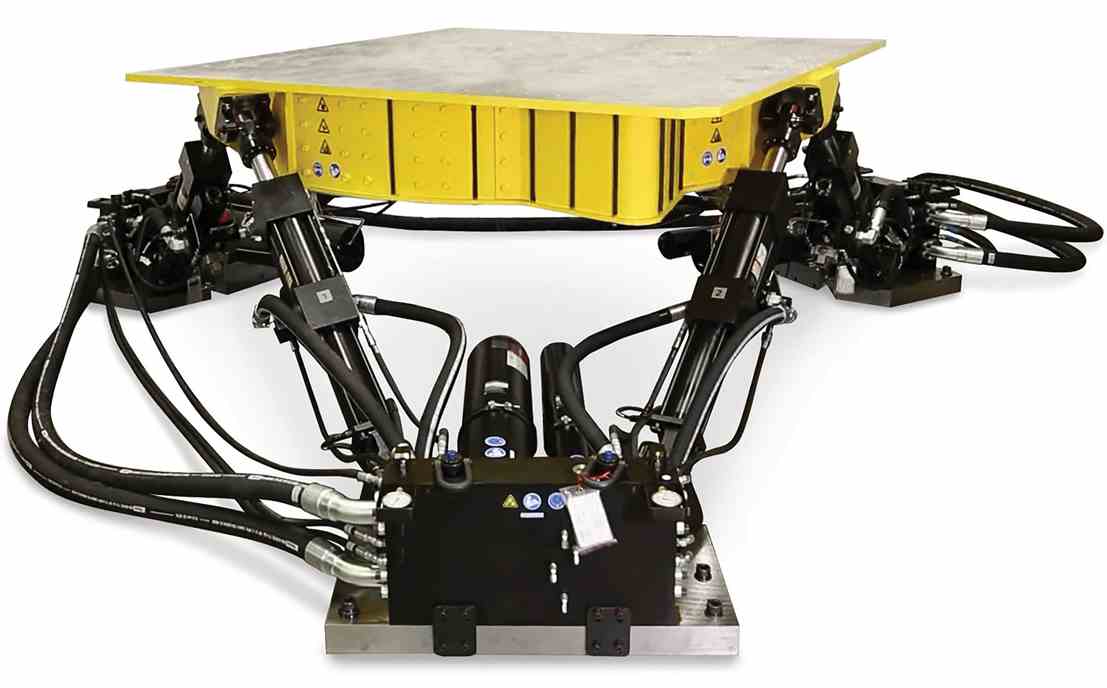

Specifications: Model 354.20

	Units	354.20 Square Table
Table Size	mm	2.2 x 2.2
	ft	7.2 x 7.2
Simulation Frequency (bare table)	Hz	0.8-100
Simulation Frequency (max payload)	Hz	0.8-100
Maximum Payload	kg	2000
	lbs	4409
Table Mounting Pattern	mm	100 x 100
	in	3.94 x 3.94
Actuator Peak Force 172 bar - 353.10 210 bar - 353.20 & 354.20	kN	67
	kip	15.1
Linear Displacement
Vertical (Z)	± mm	140
	± in	5.51
Lateral (Y)	± mm	110
	± in	4.33
Longitudinal (X)	± mm	125
	± in	4.92
Angular Displacement
Roll	± deg	9
Pitch	± deg	8
Yaw	± deg	6
Linear Velocity
Vertical (Z)	mm/s	1700
	in/s	66.93
Lateral (Y)	mm/s	1300
	in/s	51.18
Longitudinal (X)	mm/s	1350
	in/s	53.15
Angular Velocity
Roll	deg/s	78
Pitch	deg/s	70
Yaw	deg/s	50
Linear Acceleration (bare table)
Vertical (Z)	g	15.9
Lateral (Y)	g	11.6
Longitudinal (X)	g	12.8
Linear Acceleration (max payload)
Vertical (Z)	g	6.0
Lateral (Y)	g	4.2
Longitudinal (X)	g	4.8

Specifications: Comparative

	Units	353.10 Round Table	353.20 Round Table	353.20 HP Round Table	353.20 Square Table	353.20 HP Square Table	353.50 Square Table	354.20 Square Table
Table Size	mm	1.0 dia.	2.0 dia.	2.0 dia.	2.2 x 2.2	2.2 x 2.2	2.5 x 2.5	2.2 x 2.2
	ft	3.3 dia.	6.8 dia.	6.8 dia.	7.2 x 7.2	7.2 x 7.2	8.2 x 8.2	7.2 x 7.2
Simulation Frequency (bare table)	Hz	0.8-500	0.8-150	0.8-150	0.8-150	0.8-150	0.8-100	0.8-100
Simulation Frequency (max payload)	Hz	0.8-250	0.8-100	0.8-100	0.8-100	0.8-100	0.8-100	0.8-100
Maximum Payload	kg	500	680	1000	680	1000	3000	2000
	lbs	1102	1499	2205	1499	2205	6600	4409
Table Mounting Pattern	mm	100 x 100	100 x 100	100 x 100	100 x 100	100 x 100	200 x 200	100 x 100
	in	3.94 x 3.94	3.94 x 3.94	3.94 x 3.94	3.94 x 3.94	3.94 x 3.94	7.9 x 7.9	3.94 x 3.94
Actuator Peak Force 172 bar - 353.10 210 bar - 353.20 & 354.20	kN	22.2	70.6	70.6	70.6	70.6	250	67
	kip	5.0	15.9	15.9	15.9	15.9	56.2	15.1
Linear Displacement
Vertical (Z)	± mm	36	145	140	145	140	164	140
	± in	1.42	5.71	5.51	5.71	5.51	6.46	5.51
Lateral (Y)	± mm	31	115	110	115	110	170	110
	± in	1.22	4.53	4.33	4.53	4.33	6.69	4.33
Longitudinal (X)	± mm	35	130	125	130	125	200	125
	± in	1.38	5.12	4.92	5.12	4.92	7.87	4.92
Angular Displacement
Roll	± deg	4.6	8.5	8	8.5	8	10	9
Pitch	± deg	4.1	7.5	7	7.5	7	10	8
Yaw	± deg	3.5	6	5.5	6	5.5	8.4	6
Linear Velocity
Vertical (Z)	mm/s	950	1200	1200	1200	1200	2180	1700
	in/s	37.4	47.24	47.24	47.24	47.24	85.83	66.93
Lateral (Y)	mm/s	850	900	900	900	900	1800	1300
	in/s	33.47	35.43	35.43	35.43	35.43	70.87	51.18
Longitudinal (X)	mm/s	850	1000	1000	1000	1000	1740	1350
	in/s	33.47	39.37	39.37	39.37	39.37	68.5	53.15
Angular Velocity
Roll	deg/s	140	78	78	78	78	110	78
Pitch	deg/s	130	70	70	70	70	110	70
Yaw	deg/s	105	50	50	50	50	90	50
Linear Acceleration (bare table)
Vertical (Z)	g	27.0	18.1	18.1	16.0	16.0	16.0	15.9
Lateral (Y)	g	19.5	14.1	14.1	12.5	12.5	8.5	11.6
Longitudinal (X)	g	21.0	16.7	16.7	14.8	14.8	7.5	12.8
Linear Acceleration (max payload)
Vertical (Z)	g	10.0	11.1	9.4	10.3	8.8	9.5	6.0
Lateral (Y)	g	7.0	8.6	7.3	8.0	6.8	5.5	4.2
Longitudinal (X)	g	7.8	10.2	8.7	9.5	8.1	6.0	4.8

Downloads

MTS MAST™ (MULTI-AXIAL SIMULATION TABLE) SYSTEM BROCHURE
